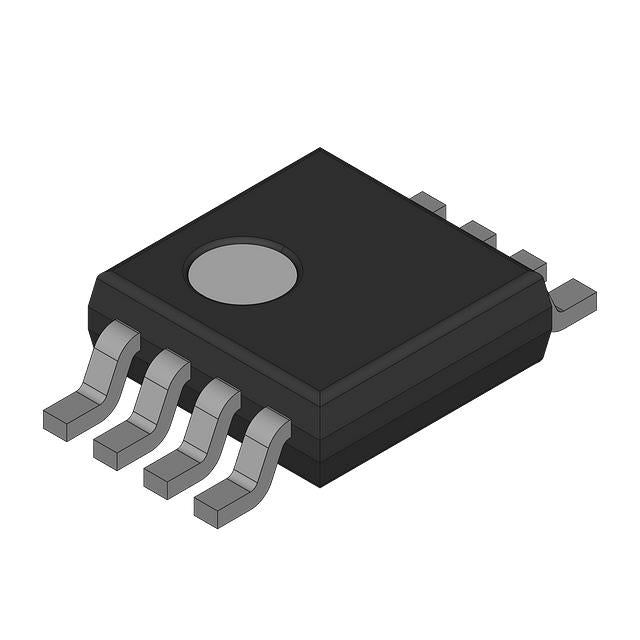

Cypress Semiconductor Corp CY2410SC-1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.48 | $4.48 |
| 15+ | $1.03 | $15.45 |
| 25+ | $1.01 | $25.25 |
| 50+ | $0.95 | $47.50 |
| 100+ | $0.84 | $84.00 |
| N+ | $0.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Cypress Semiconductor Corp |
| Product Series | |
| Packaging | Bulk | |
| Type | Clock Generator |
| PLL | Yes |
| Input | Clock |
| Output | Clock |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/No |
| Frequency - Max | 27MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | 0°C ~ 70°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
The CY2410SC-1 from Cypress Semiconductor is a single-circuit Clock Generator featuring an integrated PLL. It accepts a clock input and delivers a stable 27MHz output, making it a compact timing solution for a wide range of digital systems. Housed in a space-saving 8-SOIC package, it operates over a 0°C to 70°C temperature range, ideal for consumer and industrial applications requiring reliable clock synthesis.
- Compact Integration: Single-chip PLL clock generator reduces board space and BOM cost compared to discrete oscillator solutions.
- Stable 27MHz Output: Provides a precise, low-jitter clock essential for high-performance digital circuits and communication interfaces.
- Wide Temperature Range: Operates reliably from 0°C to 70°C, suitable for commercial and industrial environments.
- Simple Design: Requires only a clock input, simplifying PCB layout and reducing design complexity.
Consumer Electronics Timing
The CY2410SC-1 generates a stable 27MHz clock, ideal for microcontrollers and digital signal processors in consumer devices like set-top boxes and DVD players, ensuring reliable operation.
Networking Equipment
Use this clock generator to provide a precise reference clock for Ethernet PHYs and switches, maintaining data integrity and synchronization in network infrastructure.
Industrial Control Systems
In PLCs and industrial automation, the CY2410SC-1 delivers a consistent clock for logic controllers and interface chips, enhancing system stability in noisy environments.
Test and Measurement Instruments
For oscilloscopes and signal analyzers, this PLL-based generator provides a clean 27MHz reference, improving measurement accuracy and repeatability.
Audio/Video Interfaces
Generate the required pixel clock for video encoders/decoders or audio codecs, ensuring smooth synchronization between audio and video streams in multimedia systems.
- Q: What type of device is the CY2410SC-1?
- A: The CY2410SC-1 is a Clock Generator with integrated PLL, designed to generate precise clock signals from a single input clock.
- Q: Does the CY2410SC-1 support PLL?
- A: Yes, it includes a Phase-Locked Loop (PLL) for frequency synthesis and clock generation.
- Q: What are the input and output types?
- A: The input type is Clock, and the output type is also Clock. Both are single-ended (non-differential) signals.
- Q: How many circuits does it have?
- A: It has 1 circuit, providing a single clock output.
- Q: What is the maximum frequency?
- A: The maximum output frequency is 27MHz.
- Q: What is the operating temperature and package?
- A: It operates from 0°C to 70°C and comes in an 8-SOIC (0.154", 3.90mm Width) package.
