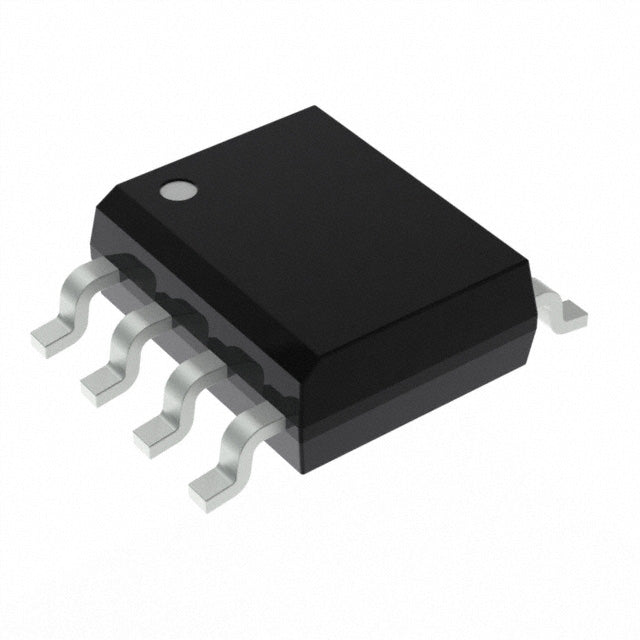

Infineon Technologies CY25100SXCF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $53.41 | $53.41 |
| 15+ | $12.28 | $184.20 |
| 25+ | $12.02 | $300.50 |
| 50+ | $11.35 | $567.50 |
| 100+ | $10.01 | $1,001.00 |
| N+ | $2.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | |
| Packaging | Marketplace | Tube |
| Type | Fanout Buffer (Distribution), Spread Spectrum Clock Generator |
| PLL | Yes |
| Input | CMOS, Crystal |
| Output | CMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:2 |
| Differential - Input:Output | No/No |
| Frequency - Max | 200MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 3.13V ~ 3.45V |
| Operating Temperature | 0°C ~ 70°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| ROHS |  |
The Infineon Technologies CY25100SXCF is a versatile single-circuit device combining a Fanout Buffer and Spread Spectrum Clock Generator. It accepts CMOS or Crystal inputs and provides a CMOS output at frequencies up to 200MHz. Packaged in an 8-SOIC, it is designed for EMI reduction and clock distribution in a wide range of digital systems.
- Dual Functionality: Combines clock buffering and spread spectrum generation in one device, saving board space.
- Flexible Input Options: Accepts both CMOS and Crystal inputs, providing design flexibility.
- EMI Mitigation: Spread spectrum capability reduces radiated emissions, easing compliance testing.
- High-Speed Operation: Supports frequencies up to 200MHz for modern high-speed digital logic.
FPGA and ASIC Clock Distribution
The CY25100SXCF buffers and distributes a clean CMOS clock to multiple FPGA or ASIC inputs, ensuring synchronized operation in complex digital designs.
EMI-Sensitive Consumer Devices
As a spread spectrum generator, it reduces EMI in set-top boxes, DVRs, and gaming consoles, helping meet regulatory requirements.
Networking Switches and Routers
Provides a low-jitter, buffered clock for PHYs and switch fabrics, improving signal integrity in high-speed Ethernet systems.
Embedded Processor Systems
Use to fan out a clock from a crystal or external CMOS source to multiple peripherals, reducing the need for multiple oscillators.
Industrial Automation Controllers
Delivers a stable, buffered clock to PLCs and motion controllers, ensuring reliable timing in noisy industrial environments.
Audio/Video Interfaces
Generates and distributes a spread-spectrum clock for HDMI or DisplayPort transmitters, reducing EMI while maintaining signal quality.
- Q: What type of device is the CY25100SXCF?
- A: It is a Fanout Buffer (Distribution) and Spread Spectrum Clock Generator.
- Q: Does the CY25100SXCF include a PLL?
- A: Yes, it includes a Phase-Locked Loop (PLL).
- Q: What are the input and output types?
- A: The input types are CMOS and Crystal. The output type is CMOS.
- Q: How many circuits does it have and what is the frequency?
- A: It has 1 circuit and operates at a maximum frequency of 200MHz.
- Q: What is the supply voltage and package?
- A: The supply voltage is not specified in the provided data. The package is 8-SOIC.
- Q: What is the operating temperature range?
- A: The operating temperature range is 0°C to 70°C.
CY25100SXCF.pdf
