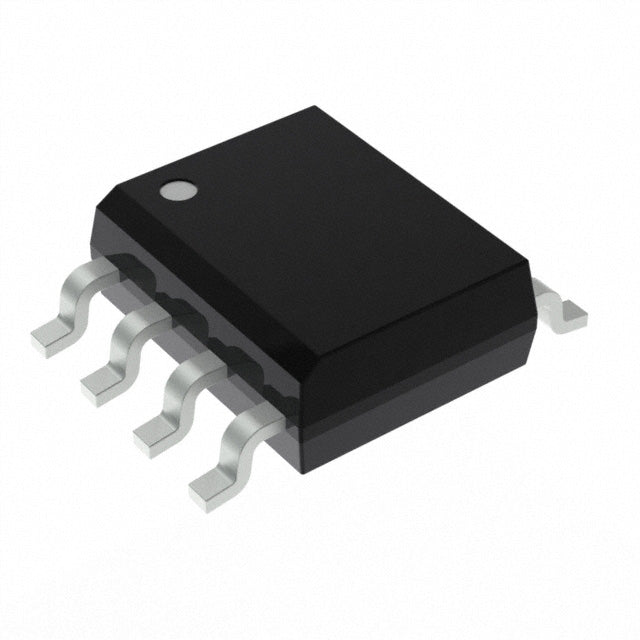

Cypress Semiconductor Corp CY25482SXI

The CY25482SXI from Cypress Semiconductor is a versatile clock generator IC designed for a wide range of timing applications. With a single circuit supporting frequencies up to 166MHz, it provides a compact and efficient solution for generating stable clock signals. The device features a PLL with bypass mode, allowing for flexible frequency synthesis and jitter cleanup. Its LVCMOS input and clock output interface ensure easy integration with standard logic families. Housed in a space-saving 8-SOIC package and rated for -40°C to 85°C, this clock generator is ideal for industrial, networking, and consumer electronics where reliable timing is critical.

• Flexible PLL with Bypass: The integrated PLL can multiply frequencies or be bypassed for direct clock distribution, offering design versatility.
• Industrial Temperature Range: Rated for -40°C to 85°C, ensuring reliable operation in demanding environments.
• Compact Package: The 8-SOIC footprint minimizes board space, ideal for space-constrained designs.
• High-Frequency Support: Generates clocks up to 166MHz, suitable for a variety of high-speed digital systems.

Consumer Electronics Timing

Generate stable clock signals for microcontrollers, USB controllers, and audio codecs in consumer devices like set-top boxes and smart home hubs, leveraging the 166MHz output and LVCMOS interface.

Industrial Control Systems

Provide reliable timing for PLCs, motor controllers, and industrial sensors operating in harsh environments, thanks to the -40°C to 85°C temperature range and compact SOIC package.

Networking Equipment

Use the CY25482SXI to generate reference clocks for Ethernet PHYs and switches in routers and gateways, ensuring synchronized data transmission with low jitter.

Embedded Computing

Clock FPGAs, DSPs, and application processors in embedded systems, utilizing the PLL with bypass to multiply or clean up input clock signals for core logic.

Test and Measurement

Create precise timing references for data acquisition systems and signal generators, where the 166MHz maximum frequency and single-circuit design simplify clock tree design.

Q: What type of device is the CY25482SXI?

A: The CY25482SXI is a clock generator IC from Cypress Semiconductor, designed to produce precise clock signals for electronic systems.

Q: Does the CY25482SXI support PLL?

A: Yes, it features a Phase-Locked Loop (PLL) with bypass capability, allowing flexible clock generation and synchronization.

Q: What are the input and output types?

A: It accepts LVCMOS input and provides Clock output. This means it takes a standard CMOS-level signal and outputs a clock signal.

Q: How many circuits does it have and what is the maximum frequency?

A: It has 1 circuit and supports a maximum frequency of 166MHz, suitable for various mid-speed applications.

Q: What is the operating temperature range?

A: The CY25482SXI operates over an industrial temperature range of -40°C to 85°C.

Q: What package is the CY25482SXI available in?

A: It comes in an 8-SOIC (0.154", 3.90mm Width) surface-mount package.
