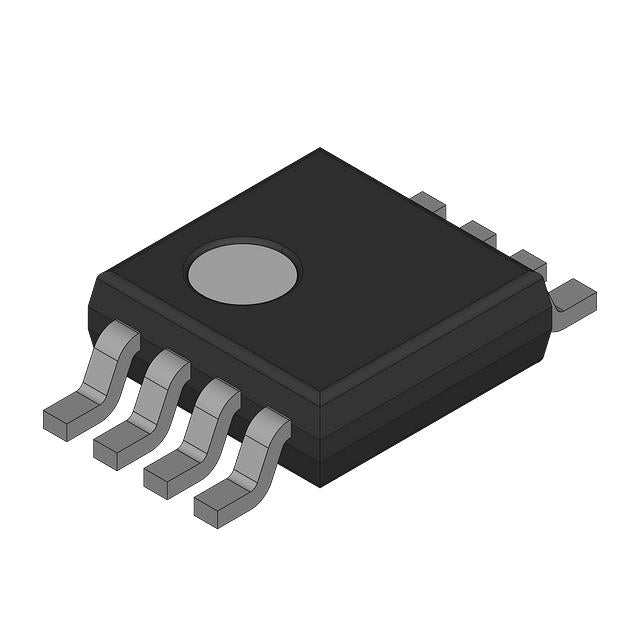

Cypress Semiconductor Corp CY25818SC
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.32 | $3.32 |
| 15+ | $0.76 | $11.40 |
| 25+ | $0.75 | $18.75 |
| 50+ | $0.71 | $35.50 |
| 100+ | $0.62 | $62.00 |
| N+ | $0.12 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Cypress Semiconductor Corp |
| Product Series | |
| Packaging | Bulk | |
| Type | Spread Spectrum Clock Generator |
| PLL | Yes |
| Input | Clock, Crystal |
| Output | Clock |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/No |
| Frequency - Max | 16MHz |
| Divider/Multiplier | Yes/Yes |
| Voltage - Supply | 2.97V ~ 3.63V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
The CY25818SC is a spread spectrum clock generator from Cypress Semiconductor, featuring an integrated PLL for EMI reduction. It accepts Clock or Crystal inputs and outputs a spread-spectrum clock at up to 16MHz. Operating from 0°C to 70°C, it is packaged in an 8-SOIC, ideal for consumer electronics requiring lower electromagnetic interference.
- Flexible Input: Accepts either clock or crystal, simplifying design.
- EMI Reduction: Spread spectrum lowers peak emissions, easing compliance.
- Integrated PLL: Provides frequency synthesis from a low-cost crystal.
- Standard Package: 8-SOIC is widely available and cost-effective.
Consumer Audio Equipment
In DVD players or sound bars, the CY25818SC reduces EMI from the 16MHz clock, improving audio signal clarity.
Set-Top Box Timing
For digital TV receivers, the spread spectrum clock minimizes interference with tuner circuits, enhancing signal reception.
Printer Controller Clocking
In laser printers, the generator provides a stable clock for the main controller while reducing radiated emissions.
Gaming Console EMI Control
For gaming consoles, the spread spectrum feature helps meet strict EMI regulations without additional shielding.
Home Automation Hubs
In smart home controllers, the crystal input option allows a low-cost crystal to generate a clean, low-EMI clock.
- Q: What is the CY25818SC?
- A: It is a Spread Spectrum Clock Generator from Cypress Semiconductor, designed to reduce EMI.
- Q: Does it have a PLL?
- A: Yes, it includes a Phase-Locked Loop for frequency synthesis and spread spectrum modulation.
- Q: What input types are supported?
- A: It accepts Clock or Crystal inputs, offering flexibility in reference sources.
- Q: What is the output type?
- A: The output is a Clock signal, providing a spread-spectrum clock output.
- Q: How many circuits does it have?
- A: It has 1 circuit, generating a single output clock.
- Q: What is the maximum frequency and package?
- A: It supports up to 16MHz and comes in an 8-SOIC package, operating from 0°C to 70°C.
