Infineon Technologies CY27430FLTXS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $124.54 | $124.54 |
| 15+ | $28.65 | $429.75 |
| 25+ | $28.03 | $700.75 |
| 50+ | $26.47 | $1,323.50 |
| 100+ | $23.36 | $2,336.00 |
| N+ | $4.67 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | |
| Packaging | Marketplace | Tray |
| Type | Spread Spectrum Clock Generator |
| PLL | Yes with Bypass |
| Input | Clock, Crystal |
| Output | CML, HCSL, LVCMOS, LVDS, LVPECL |
| Number of Circuits | 1 |
| Ratio - Input:Output | 2:8 |
| Differential - Input:Output | Yes/Yes |
| Frequency - Max | 250MHz, 700MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 1.71V ~ 1.89V, 2.25V ~ 2.75V, 3.13V ~ 3.46V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

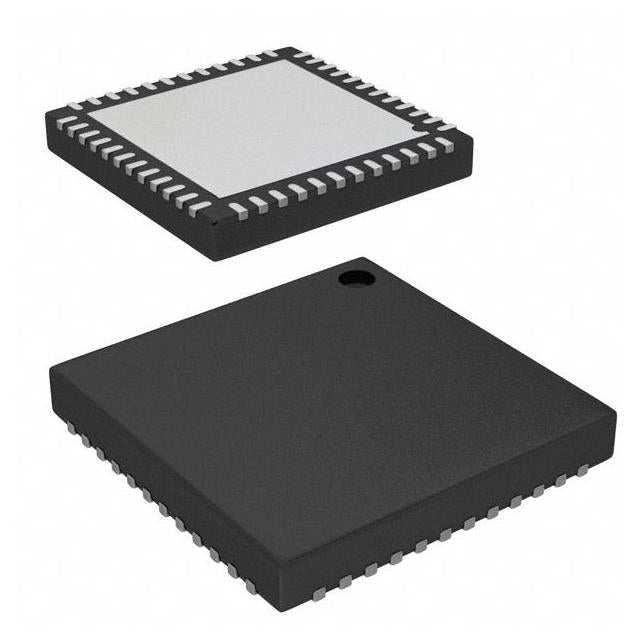

| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (7x7) |
| ROHS |  |
The Infineon CY27430FLTXS is a Spread Spectrum Clock Generator with a PLL that can be bypassed. It accepts Clock or Crystal inputs and provides a wide range of outputs including CML, HCSL, LVCMOS, LVDS, and LVPECL. Supporting frequencies of 250MHz and 700MHz, it is designed to reduce EMI in electronic systems. Packaged in a 48-VFQFN, it operates from -40°C to 105°C.
- EMI Reduction: Spread spectrum technology lowers electromagnetic interference for regulatory compliance.
- Versatile Outputs: Supports CML, HCSL, LVCMOS, LVDS, and LVPECL for broad compatibility.
- PLL Bypass Option: Allows direct clocking when spread spectrum is not needed.
- Wide Temperature Range: Operates from -40°C to 105°C for industrial and automotive use.
EMI Reduction in Consumer Electronics
Spread spectrum clocking reduces electromagnetic interference (EMI) in devices like TVs, set-top boxes, and gaming consoles, helping meet regulatory standards.
PC & Laptop Motherboards
Generates spread spectrum clocks for CPUs, memory, and I/O interfaces to minimize EMI and improve signal integrity.
Networking & Communication
Provides low-EMI clocks for routers, switches, and communication equipment, ensuring reliable operation in dense environments.
Automotive Infotainment
With a -40°C to 105°C range, it is suitable for automotive infotainment systems requiring EMI-compliant clocking.
Industrial Automation
Used in industrial controllers and drives to reduce EMI and meet EMC requirements.
- Q: What type of device is the CY27430FLTXS?
- A: It is a Spread Spectrum Clock Generator.
- Q: Does it include a PLL?
- A: Yes, it includes a PLL with bypass capability ('Yes with Bypass').
- Q: What are the input and output types?
- A: It accepts Clock and Crystal inputs and provides CML, HCSL, LVCMOS, LVDS, and LVPECL outputs.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: It supports frequencies of 250MHz and 700MHz.
- Q: What is the package and temperature range?
- A: It comes in a 48-VFQFN Exposed Pad package and operates from -40°C to 105°C (TA).
CY27430FLTXS.pdf
- Q: What type of device is the CY27430FLTXS?
- A: It is a Spread Spectrum Clock Generator.
- Q: Does it include a PLL?
- A: Yes, it includes a PLL with bypass capability ('Yes with Bypass').
- Q: What are the input and output types?
- A: It accepts Clock and Crystal inputs and provides CML, HCSL, LVCMOS, LVDS, and LVPECL outputs.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: It supports frequencies of 250MHz and 700MHz.
- Q: What is the package and temperature range?
- A: It comes in a 48-VFQFN Exposed Pad package and operates from -40°C to 105°C (TA).
