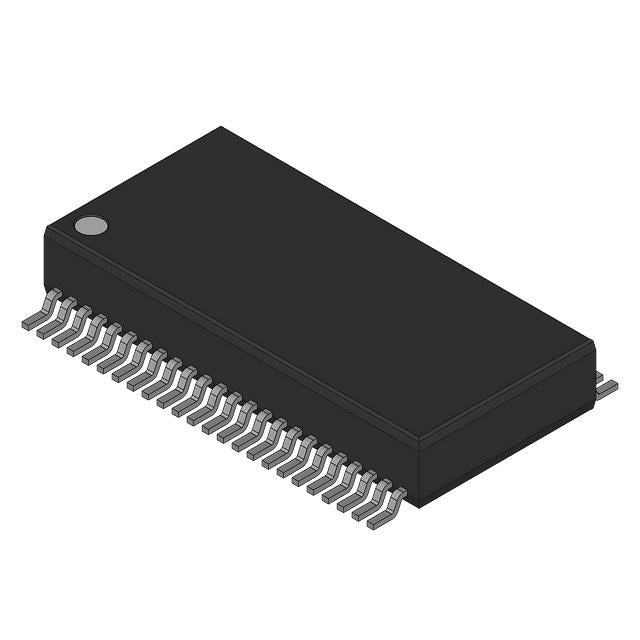

Cypress Semiconductor Corp CY28405OC-2T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $22.00 | $22.00 |
| 15+ | $5.06 | $75.90 |
| 25+ | $4.95 | $123.75 |
| 50+ | $4.68 | $234.00 |
| 100+ | $4.13 | $413.00 |
| N+ | $0.83 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Cypress Semiconductor Corp |
| Product Series | |
| Packaging | Bulk | |
| Type | Clock Synthesizer |
| PLL | Yes |
| Input | LVTTL, Crystal |
| Output | Clock |
| Number of Circuits | 2 |
| Ratio - Input:Output | 1:6 |
| Differential - Input:Output | No/Yes |
| Frequency - Max | 266MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 48-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 48-SSOP |
The CY28405OC-2T is a high-performance Clock Synthesizer from Cypress Semiconductor, featuring an integrated PLL for precise frequency generation. With 2 circuits and support for LVTTL or Crystal inputs, it delivers reliable Clock outputs up to 266MHz. This device is ideal for telecom, networking, and industrial applications requiring multiple synchronized clock signals.
- Dual-circuit design enables simultaneous generation of multiple clock frequencies, reducing component count and board space.
- Integrated PLL ensures low-jitter output, critical for high-speed digital systems.
- Flexible input options (LVTTL or Crystal) provide design versatility for various reference sources.
- Wide operating temperature range (0°C to 70°C) supports standard commercial environments.
Telecom Clock Distribution
Generate multiple synchronized clock signals for telecom line cards and switching equipment, leveraging the 2-circuit architecture to distribute timing across multiple channels.
Networking Timing
Provide precise clocking for network processors and switches, using the PLL to generate low-jitter clocks from a crystal reference for reliable data transmission.
Processor Clock Generation
Create core and I/O clocks for microprocessors and memory controllers, utilizing the 266MHz maximum frequency to support high-speed digital logic.
Industrial Timing
Generate stable timing signals for industrial control systems and PLCs, ensuring synchronized operation in automated manufacturing environments.
Audio/Video Synchronization
Produce reference clocks for audio codecs and video encoders, maintaining frame and sample rate accuracy for multimedia applications.
- Q: What type of device is the CY28405OC-2T?
- A: It is a Clock Synthesizer designed to generate multiple clock signals from a reference input.
- Q: Does the CY28405OC-2T include a PLL?
- A: Yes, it features an integrated Phase-Locked Loop (PLL) for frequency synthesis.
- Q: What are the input and output types?
- A: It accepts LVTTL or Crystal inputs and provides Clock outputs.
- Q: How many circuits does it have and what is the maximum frequency?
- A: It has 2 circuits and supports a maximum frequency of 266MHz.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C (TA).
- Q: What package is the CY28405OC-2T available in?
- A: It comes in a 48-BSSOP (0.295", 7.50mm Width) package.
