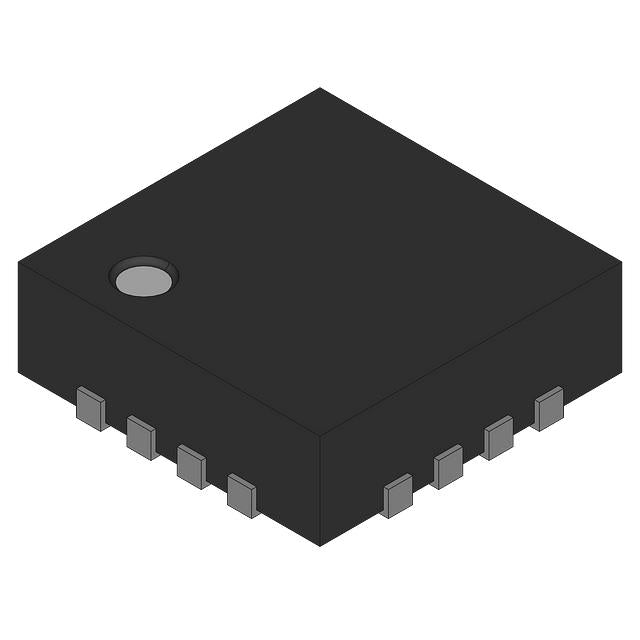

Cypress Semiconductor Corp CY8C20224-12LKXIKG
Regular price
$5.36
Regular price
$1.34
Sale price
$5.36
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.36 | $5.36 |
| 15+ | $1.23 | $18.45 |
| 25+ | $1.21 | $30.25 |
| 50+ | $1.14 | $57.00 |
| 100+ | $1.01 | $101.00 |
| N+ | $0.20 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Cypress Semiconductor Corp |
| Product Series | PSOC®1 CY8C20xxx |
| Packaging | Bulk | |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Speed | 12MHz |
| Connectivity | I2C, SPI |
| Peripherals | LVD, POR, WDT |
| Number of I/O | 12 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.25V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-QFN (3x3) |
| Package / Case | 16-UFQFN |
The Cypress CY8C20224-12LKXIKG is an 8-bit microcontroller with M8C core at 12MHz. It offers 8KB flash and 512B SRAM, operating from 2.4V to 5.25V. The 16-UFQFN package is designed for space-constrained touch sensing applications.
- CapSense integration: Reduces external components for touch interfaces.
- Low power: Suitable for battery-powered devices.
- Compact package: 16-UFQFN saves board space.
- Automotive-grade option: Available with AEC-Q100 qualification.
Touch-Enabled Remote Controls
CapSense replaces mechanical buttons, improving durability.
White Goods Interfaces
Reliable operation in washing machines and microwaves with LVD.
Industrial Keypads
M8C core handles debouncing and communication in harsh environments.
Medical Monitoring
Low power enables battery-operated glucose meters.
Automotive Aftermarket
Wide voltage tolerance suits car accessory modules.
- Q: What is the difference from CY8C20224-12LKXIKC?
- A: The 'G' suffix indicates a different packaging variant (tape & reel).
- Q: What is the core?
- A: M8C 8-bit core.
- Q: What is the speed?
- A: 12MHz.
- Q: What is the supply voltage?
- A: 2.4V to 5.25V.
Base Product Number ：
CY8C20224-12LKXIKG
CY8C20224-12LKXIKG.pdf
