Cypress Semiconductor Corp CY8C20234-12LKXIKC
Regular price
$6.24
Regular price
$1.56
Sale price
$6.24
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.24 | $6.24 |
| 15+ | $1.44 | $21.60 |
| 25+ | $1.40 | $35.00 |
| 50+ | $1.33 | $66.50 |
| 100+ | $1.17 | $117.00 |
| N+ | $0.23 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Cypress Semiconductor Corp |
| Product Series | PSOC®1 CY8C20xxx |
| Packaging | Bulk | |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Speed | 12MHz |
| Connectivity | I2C, SPI |
| Peripherals | LVD, POR, WDT |
| Number of I/O | 13 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.25V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-QFN (3x3) |
| Package / Case | 16-UFQFN |

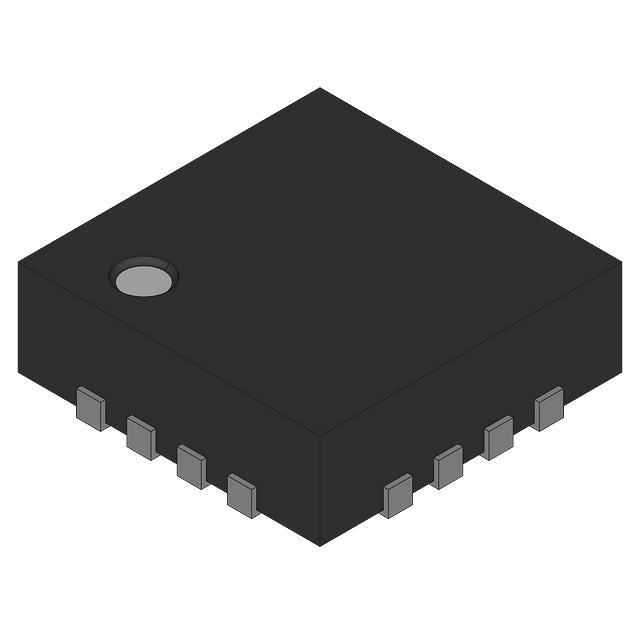

The CY8C20234-12LKXIKC from Cypress Semiconductor is an 8-bit microcontroller based on the M8C core, running at up to 12MHz. It provides 8KB of flash and 512 bytes of RAM in a compact 16-UFQFN package. Operating from 2.4V to 5.25V, it includes LVD, POR, and WDT, making it suitable for touch-sensing and portable applications.
- PSoC touch-sensing capability – integrates capacitive sensing without external ICs.
- Compact 16-UFQFN – saves space in miniaturized designs.
- Wide voltage range (2.4V-5.25V) – flexible for various power sources.
- Integrated WDT and LVD – enhances system reliability.
Capacitive Touch Interfaces
Cypress's PSoC architecture excels at touch sensing, making it ideal for buttons and sliders.
Battery-Powered Remote Controls
Low voltage (2.4V) and WDT extend battery life in consumer remotes.
Small Appliances
The 16-UFQFN package fits compact PCBs in coffee makers and toothbrushes.
LED Lighting Control
8KB flash stores lighting patterns, while PWM outputs drive LED drivers.
Medical Disposable Devices
Low cost and small size suit single-use diagnostic tools.
Security Keypads
LVD and POR ensure reliable operation in alarm systems.
