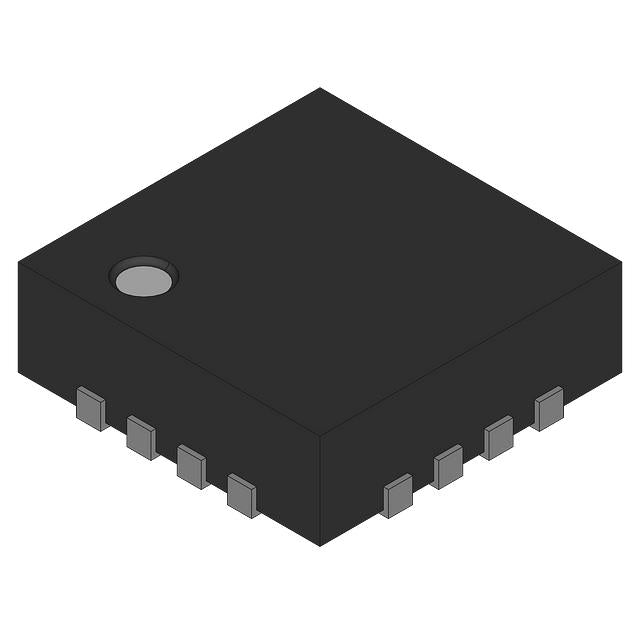

Cypress Semiconductor Corp CY8C20234-12LKXIKG
Regular price
$6.24
Regular price
$1.56
Sale price
$6.24
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.24 | $6.24 |
| 15+ | $1.44 | $21.60 |
| 25+ | $1.40 | $35.00 |
| 50+ | $1.33 | $66.50 |
| 100+ | $1.17 | $117.00 |
| N+ | $0.23 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Cypress Semiconductor Corp |
| Product Series | PSOC®1 CY8C20xxx |
| Packaging | Bulk | |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Speed | 12MHz |
| Connectivity | I2C, SPI |
| Peripherals | LVD, POR, WDT |
| Number of I/O | 13 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.25V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-QFN (3x3) |
| Package / Case | 16-UFQFN |
The CY8C20234-12LKXIKG from Cypress Semiconductor is a programmable system-on-chip (PSoC) with an M8C core running at 12MHz. It operates from 2.4V to 5.25V and includes 8KB of flash and 512 bytes of RAM. The device features LVD, POR, and WDT, and is packaged in a 16-UFQFN. It is well-suited for touch-sensing and HMI applications.
- Capacitive sensing capability for modern UI.
- 12MHz core for responsive processing.
- 8KB flash for complex firmware.
- WDT enhances system reliability.
CapSense Touch Interfaces
This Cypress PSoC device supports capacitive sensing, ideal for touch buttons and sliders.
Human-Machine Interface (HMI)
With 8KB flash, it can handle LED control and touch input in control panels.
Portable Electronics
Low voltage operation (2.4V) suits battery-powered devices.
Industrial Sensors
WDT ensures reliable operation in noisy environments.
Consumer Appliances
Replaces mechanical buttons with touch controls in microwaves and washers.
Medical Monitoring
Compact package and low power enable wearable health devices.
- Q: What is the voltage range?
- A: 2.4V to 5.25V.
- Q: What core does it use?
- A: M8C core at 12MHz.
- Q: How much flash and RAM?
- A: 8KB flash and 512 bytes RAM.
- Q: What package is it?
- A: 16-UFQFN.
- Q: What features are included?
- A: LVD, POR, and WDT.
Base Product Number ：
CY8C20234
CY8C20234-12LKXIKG.pdf
