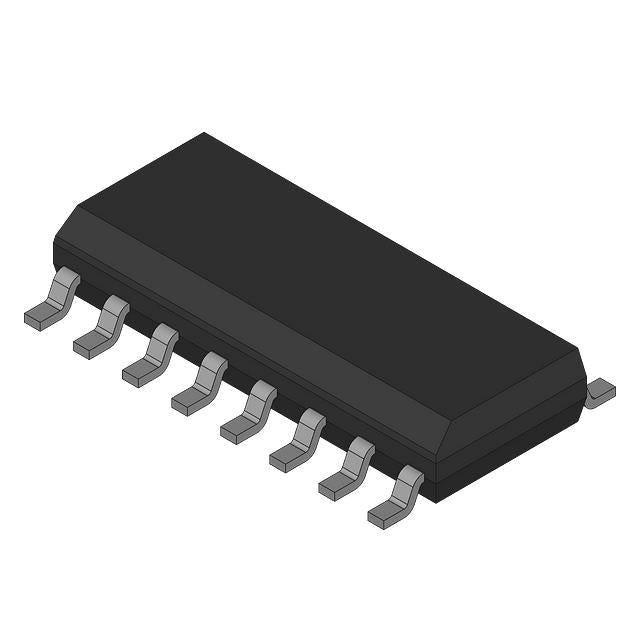

Cypress Semiconductor Corp CY8C20234-12SXIKP
Regular price
$1.39
Regular price
$1.46
Sale price
$1.39
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.39 | $1.39 |
| 15+ | $1.34 | $20.10 |
| 25+ | $1.31 | $32.75 |
| 50+ | $1.24 | $62.00 |
| 100+ | $1.10 | $110.00 |
| N+ | $0.22 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Cypress Semiconductor Corp |
| Product Series | PSOC®1 CY8C20xxx |
| Packaging | Bulk | |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Speed | 12MHz |
| Connectivity | I2C, SPI |
| Peripherals | LVD, POR, WDT |
| Number of I/O | 13 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.25V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SOIC |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
The CY8C20234-12SXIKP from Cypress Semiconductor is a low-power 8-bit MCU with 8KB flash and 512B RAM. It operates at 12MHz with a 2.4V-5.25V supply, featuring LVD, POR, and WDT. The 16-SOIC package is ideal for compact sensing applications.
- Integrated CapSense: Eliminates external touch ICs, saving board space.
- Wide voltage range: Works with 3V and 5V logic without level shifters.
- Low-power M8C core: Extends battery life in handheld devices.
- Compact 16-SOIC: Reduces PCB footprint for space-limited designs.
Capacitive Touch Sensing
Integrated CapSense technology enables touch buttons and sliders without external components.
Battery Management
Low-voltage detect (LVD) and wide voltage range monitor battery health in portable gear.
Human Interface Devices
M8C core with 12MHz handles keyboard and mouse controllers efficiently.
Sensor Signal Conditioning
Analog front-end with programmable gain amplifies small sensor signals.
Consumer Electronics
Small 16-SOIC package fits into remote controls and wearables.
Industrial Control Panels
Watchdog timer and POR ensure stable operation in factory environments.
- Q: What is the supply voltage range?
- A: 2.4V to 5.25V, compatible with both 3.3V and 5V systems.
- Q: What is the core architecture?
- A: M8C core running at 12MHz, optimized for low-power sensing.
- Q: How much flash memory is available?
- A: 8KB (8K x 8) for program storage.
- Q: What package is this?
- A: 16-SOIC (0.154", 3.90mm Width), compact for PCB designs.
Base Product Number ：
CY8C20234
