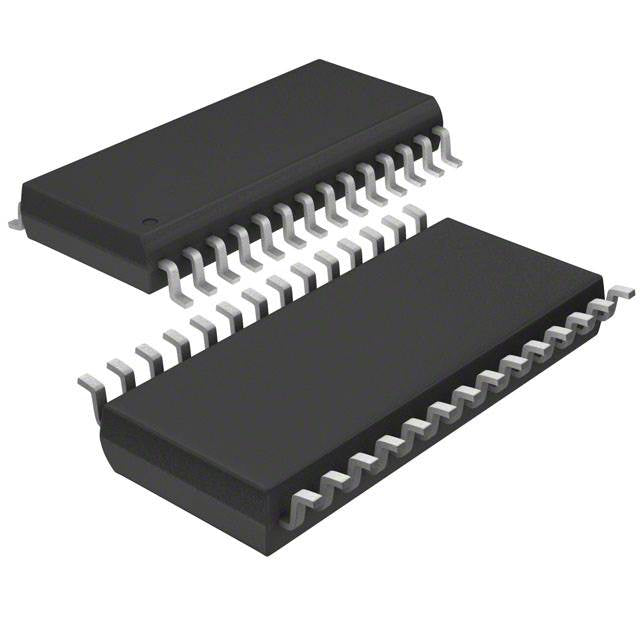

Cypress Semiconductor Corp CY8C21512-12PVXE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.36 | $17.36 |
| 15+ | $5.19 | $77.85 |
| 25+ | $5.08 | $127.00 |
| 50+ | $4.79 | $239.50 |
| 100+ | $4.23 | $423.00 |
| N+ | $0.85 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Cypress Semiconductor Corp |
| Product Series | PSOC®1 CY8C21xxx |
| Packaging | Bulk | |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Speed | 12MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 24 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.25V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SSOP |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| ROHS |  |
The CY8C21512-12PVXE is a PSoC mixed-signal microcontroller from Cypress, featuring the M8C core at 12 MHz. It integrates 8 KB flash and 512 bytes RAM, with programmable analog and digital blocks. Its 3V to 5.25V supply range and extended temperature rating make it a robust choice for automotive and industrial control.
- Extended Temperature: -40°C to 125°C ensures operation in extreme environments.
- Flexible Supply: 3V to 5.25V simplifies system power design.
- Integrated Peripherals: LVD, POR, PWM, and WDT reduce external component count.
- Compact Package: 28-SSOP saves PCB area for space-limited applications.
Automotive Sensing
Wide temperature range and LVD ensure reliable operation in engine control and battery monitoring modules.
Industrial Actuators
PWM outputs and 12MHz speed provide adequate control for valves and small motors in factory equipment.
Consumer Appliances
Low pin count and 5V compatibility simplify interfacing with touch sensors and display drivers in white goods.
Portable Instruments
Low power consumption and small SSOP package enable compact handheld measurement tools.
LED Lighting Control
PWM channels allow dimming and color mixing in smart lighting systems with minimal external components.
Power Management
POR and WDT enhance safety in power supply sequencing and fault detection circuits.
- Q: What is the core processor of the CY8C21512-12PVXE?
- A: It uses the M8C core, a proprietary 8-bit processor optimized for PSoC mixed-signal applications.
- Q: What is the operating temperature range?
- A: This device operates from -40°C to 125°C, suitable for harsh automotive and industrial environments.
- Q: What is the supply voltage range?
- A: It supports 3V to 5.25V, allowing direct connection to standard logic and sensors.
- Q: What package is this MCU available in?
- A: It comes in a 28-pin SSOP package with a 5.30mm width, ideal for space-constrained boards.
