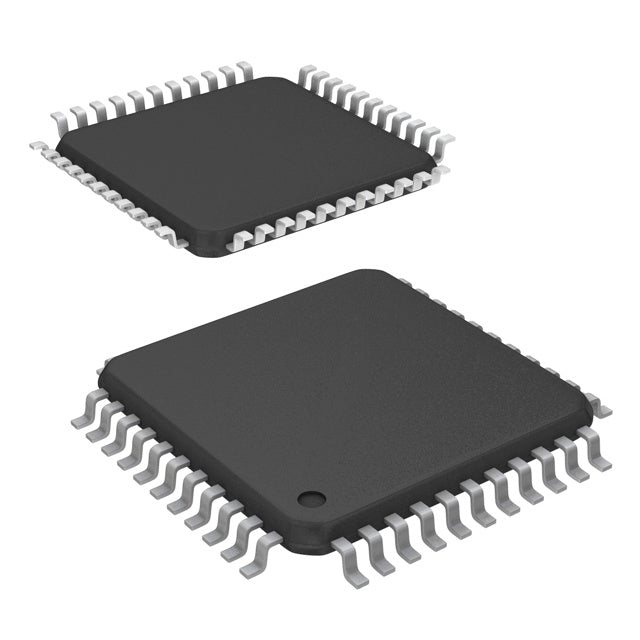

Cypress Semiconductor Corp CY8C22545-24AXI
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $21.60 | $21.60 |
| 15+ | $4.97 | $74.55 |
| 25+ | $4.86 | $121.50 |
| 50+ | $4.59 | $229.50 |
| 100+ | $4.05 | $405.00 |
| N+ | $0.81 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Cypress Semiconductor Corp |
| Product Series | PSOC®1 CY8C22xxx |
| Packaging | Bulk | |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 38 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.25V |
| Data Converters | A/D 3x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-TQFP (10x10) |
| Package / Case | 44-LQFP |
| ROHS |  |
The Cypress CY8C22545-24AXI is a high-speed 8-bit microcontroller based on the M8C core. It runs at 24MHz with a supply voltage range of 3V to 5.25V. It offers 16KB of flash memory and 1K x 8 RAM. The device includes LVD, POR, PWM, and WDT for robust operation. Packaged in a 44-pin LQFP, it operates from -40°C to 85°C, making it suitable for a wide range of embedded applications.
- High-speed 24MHz operation: Enables faster processing for real-time control loops.
- Wide voltage range (3V-5.25V): Flexible for both battery and line-powered designs.
- 44-pin LQFP: Offers more I/O for complex peripherals.
- Integrated LVD/POR/WDT: Reduces external components and improves system reliability.
Motor Control for Drones
The 24MHz M8C core and PWM channels enable precise ESC control for multi-rotor drones, with 16KB flash for flight algorithms.
Portable Medical Devices
Operating at 3V, it is suitable for battery-powered glucose meters or pulse oximeters, with 1K RAM for data buffering.
Smart Home Hubs
The 44-LQFP package provides enough I/O to interface with Zigbee, Wi-Fi, and sensor modules in a central controller.
Industrial Automation
With -40°C to 85°C rating and WDT, it can control conveyor belts or robotic arms in factory floors.
Automotive Infotainment
5.25V operation and 24MHz speed support simple display controllers or button panels in car dashboards.
Energy Metering
PWM and LVD help implement accurate power measurement and tamper detection in smart meters.
- Q: What is the maximum clock speed of the CY8C22545-24AXI?
- A: It operates at up to 24MHz.
- Q: What is the supply voltage range?
- A: It operates from 3V to 5.25V.
- Q: What package is this MCU?
- A: It comes in a 44-pin LQFP package.
- Q: Does it include LVD and POR?
- A: Yes, it has LVD, POR, PWM, and WDT.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
