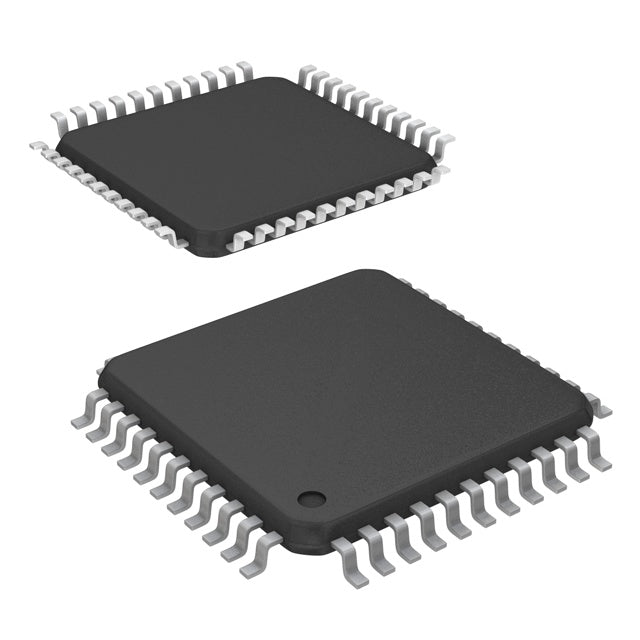

Infineon Technologies CY8C22545-24AXIT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.18 | $8.18 |
| 15+ | $7.92 | $118.80 |
| 25+ | $7.75 | $193.75 |
| 50+ | $7.32 | $366.00 |
| 100+ | $6.46 | $646.00 |
| N+ | $1.29 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™1 CY8C22xxx |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 38 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.25V |
| Data Converters | A/D 3x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-TQFP (10x10) |
| Package / Case | 44-LQFP |
| ROHS |  |
The CY8C22545-24AXIT from Infineon Technologies is a versatile 8-bit microcontroller built on the M8C core, designed for mixed-signal applications. Operating at up to 24MHz with a supply range of 3V to 5.25V, it offers 16KB Flash and 1KB RAM for embedded control tasks. Integrated features like LVD, POR, PWM, and WDT enhance system robustness, while the 44-LQFP package provides a compact footprint. This MCU is ideal for cost-sensitive designs requiring analog integration and reliable performance in harsh environments.
