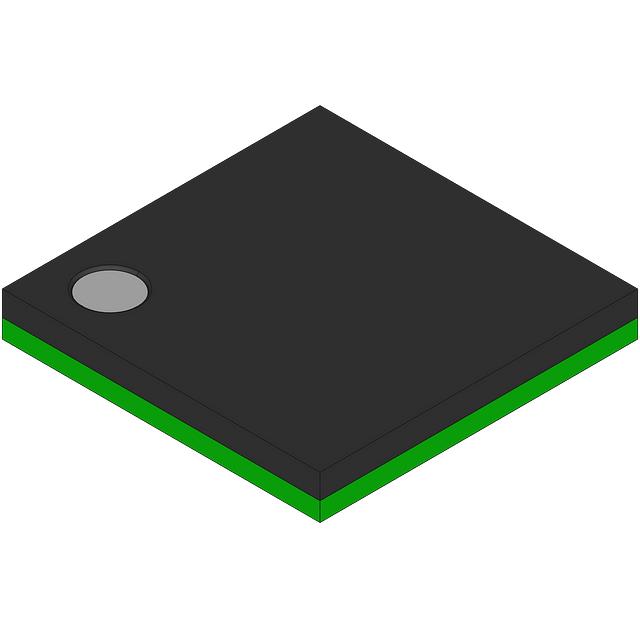

Cypress Semiconductor Corp CY8C24094-24BVXI
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Cypress Semiconductor Corp |
| Product Series | PSOC®1 CY8C24xxx |
| Packaging | Bulk | |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, SPI, UART/USART, USB |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 56 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.25V |
| Data Converters | A/D 48x14b; D/A 2x9b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-VFBGA (6x6) |
| Package / Case | 100-VFBGA |
| ROHS |  |
The CY8C24094-24BVXI from Cypress Semiconductor is a versatile 8-bit microcontroller with an M8C core running at 24MHz. It provides 16KB flash and 1K RAM, supporting a wide voltage range of 3V to 5.25V. Its compact 100-VFBGA package is perfect for space-limited designs.
- Wide voltage range: 3V-5.25V simplifies power supply design.
- Compact package: 100-VFBGA saves board space.
- Integrated peripherals: POR, PWM, WDT reduce external components.
- Cost-effective: Ideal for high-volume consumer applications.
Consumer Electronics
The M8C core at 24MHz with 16KB flash is ideal for remote controls, toys, and small appliances requiring low-cost control.
Human Interface Devices
PWM and POR features support capacitive touch sensing in keyboards and touchpads.
Sensor Interfacing
1K RAM and 3V-5.25V operation allow direct interfacing with analog sensors in data acquisition systems.
Battery Management
Low power consumption and WDT make it suitable for battery monitoring in portable devices.
Lighting Control
PWM outputs enable dimming and color control in LED lighting systems.
Simple Automation
Compact 100-VFBGA package fits space-constrained automation modules for home and office.
- Q: What is the core processor in the CY8C24094-24BVXI?
- A: It uses the M8C core.
- Q: What is the operating frequency?
- A: It operates at 24MHz.
- Q: What is the supply voltage range?
- A: It supports 3V to 5.25V.
- Q: How much flash memory does it have?
- A: It has 16KB of flash memory.
- Q: What package is available?
- A: It comes in a 100-VFBGA package.
