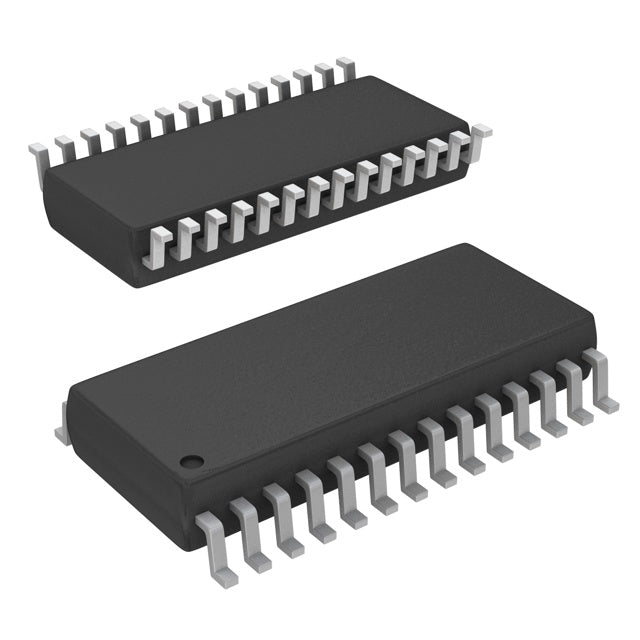

Cypress Semiconductor Corp CY8C24423A-24SXI
Regular price
$12.28
Regular price
$5.66
Sale price
$12.28
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.28 | $12.28 |
| 15+ | $5.21 | $78.15 |
| 25+ | $5.09 | $127.25 |
| 50+ | $4.81 | $240.50 |
| 100+ | $4.25 | $425.00 |
| N+ | $0.85 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Cypress Semiconductor Corp |
| Product Series | PSOC®1 CY8C24xxx |
| Packaging | Tube | |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 24 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.25V |
| Data Converters | A/D 10x14b; D/A 2x9b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SOIC |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| ROHS |  |
The Cypress CY8C24423A-24SXI is a programmable system-on-chip with an M8C core at 24MHz. It features 4KB flash, 256B SRAM, and operates from 2.4V to 5.25V. Housed in a 28-SOIC, it includes POR, PWM, and WDT, making it flexible for mixed-signal embedded designs.
- Wide supply voltage 2.4V-5.25V – compatible with both 3.3V and 5V systems.
- PSoC flexibility – configurable analog and digital blocks reduce external components.
- 24MHz M8C core – adequate for real-time control and sensing.
- 28-SOIC package – easy to solder and suitable for prototyping.
Capacitive Touch Interfaces
The Cypress PSoC architecture supports capacitive sensing for buttons and sliders.
Power Supply Sequencing
Wide voltage range and POR ensure reliable power-up sequencing in servers.
Consumer Electronics Remote Controls
Low power and 5V compatibility make it ideal for IR remote controllers.
Industrial Sensor Conditioning
Analog and digital peripherals allow signal conditioning for pressure and temperature sensors.
Battery Charger Controllers
PWM outputs and 5.25V operation manage charging profiles for Li-ion batteries.
Automotive Aftermarket Modules
Robust I/O and -40°C to 85°C range suit car alarm and lighting modules.
- Q: What core is used in the CY8C24423A-24SXI?
- A: It uses the M8C core running at up to 24MHz.
- Q: What is the supply voltage range?
- A: It operates from 2.4V to 5.25V.
- Q: How much program memory is available?
- A: It has 4KB of flash and 256 bytes of SRAM.
- Q: What package is this device in?
- A: It comes in a 28-pin SOIC package.
- Q: Does it include PWM and WDT?
- A: Yes, it includes PWM, WDT, and POR features.
