Infineon Technologies CY8C27643-24LTXI
Regular price
$7.57
Regular price
$7.97
Sale price
$7.57
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.57 | $7.57 |
| 15+ | $7.33 | $109.95 |
| 25+ | $7.17 | $179.25 |
| 50+ | $6.77 | $338.50 |
| 100+ | $5.98 | $598.00 |
| N+ | $1.20 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™1 CY8C27xxx |
| Packaging | Tray | |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 44 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.25V |
| Data Converters | A/D 4x14b; D/A 4x9b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

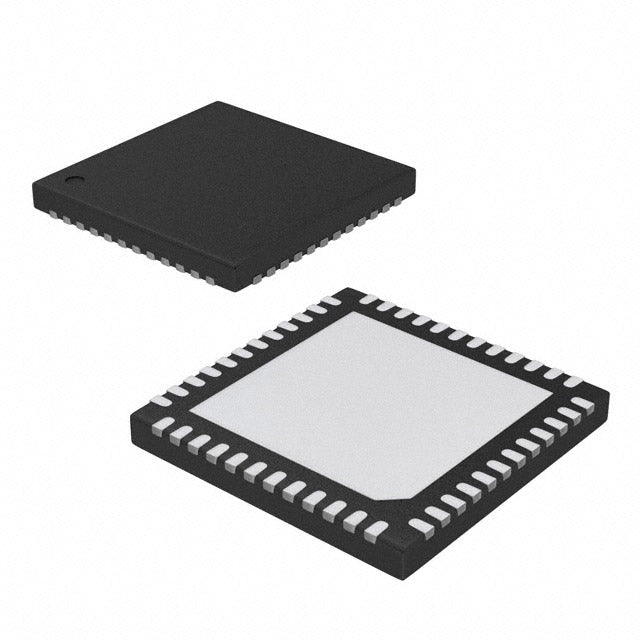

| Supplier Device Package | 48-QFN (7x7) |
| Package / Case | 48-VFQFN Exposed Pad |
| ROHS |  |
The CY8C27643-24LTXI from Infineon is a 24 MHz M8C-based microcontroller with 16KB flash and 256 bytes RAM. It operates from 3V to 5.25V and includes POR, PWM, and WDT. Packaged in a 48-VFQFN, it is designed for cost-sensitive, compact applications.
- Wide supply voltage (3V-5.25V) simplifies power design.
- Small 48-QFN package saves board space.
- Low-cost solution for basic control tasks.
- Reliable operation with POR and WDT.
Portable Consumer Electronics
With 3V-5.25V operation and low pin count, it suits battery-powered handheld devices.
Sensor Interfaces
The M8C core with PWM and WDT can handle simple sensor conditioning and timing.
Small Appliances
Its compact 48-QFN package fits space-constrained control boards for blenders and irons.
LED Lighting Control
PWM outputs allow dimming and color control in smart lighting systems.
Simple Motor Drives
24 MHz speed is sufficient for basic brushless DC motor commutation.
Educational Kits
Easy programming and 5V compatibility make it ideal for learning platforms.
- Q: What core does this device use?
- A: It uses the M8C core at 24 MHz.
- Q: What is the supply voltage range?
- A: It operates from 3V to 5.25V.
- Q: How much program memory is available?
- A: It has 16KB of flash memory.
- Q: What package is it offered in?
- A: It comes in a 48-VFQFN package with exposed pad.
Base Product Number ：
CY8C27643-24LTXI
CY8C27643-24LTXI.pdf
