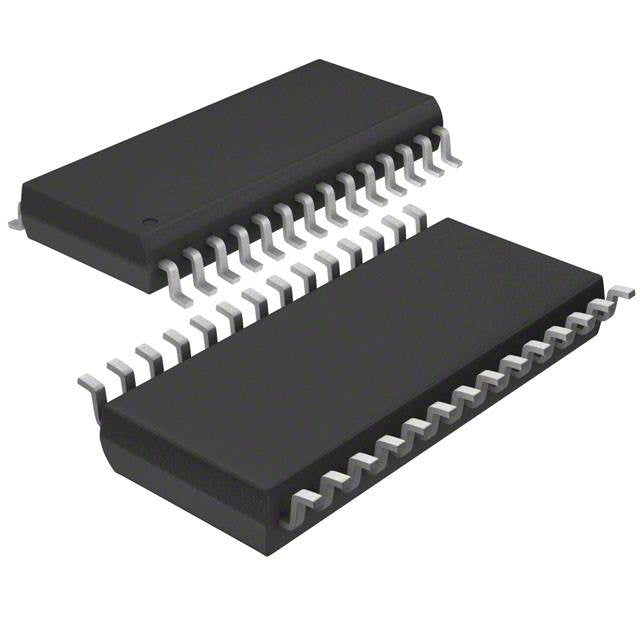

Infineon Technologies CY8C29466-24PVXI
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.23 | $9.23 |
| 15+ | $8.94 | $134.10 |
| 25+ | $8.75 | $218.75 |
| 50+ | $8.26 | $413.00 |
| 100+ | $7.29 | $729.00 |
| N+ | $1.46 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™1 CY8C29xxx |
| Packaging | Tube | |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 24 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.25V |
| Data Converters | A/D 12x14b; D/A 4x9b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SSOP |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| ROHS |  |
The Infineon CY8C29466-24PVXI is a 8-bit programmable system-on-chip (PSoC) featuring the M8C core at 24MHz. It includes 32KB flash and 2KB SRAM, packaged in a 28-SSOP. Operating from 3V to 5.25V, it offers configurable analog and digital peripherals, including PWM and POR. This MCU is ideal for capacitive sensing, power management, and consumer applications.
- Programmable Analog: Configurable op-amps and comparators reduce external component count.
- 5V Compatibility: Direct interface with legacy 5V sensors and actuators.
- Compact Package: 28-SSOP saves board space for space-limited designs.
- Low Cost: 8-bit architecture provides an economical solution for basic control tasks.
Capacitive Sensing Interfaces
The PSoC architecture includes programmable analog blocks, enabling touch buttons and sliders without external ICs.
Power Supply Sequencing
With 5V operation and PWM, it can manage power-on sequencing and voltage monitoring in server and telecom equipment.
Battery Management Systems
Low power consumption and integrated analog peripherals support voltage/current monitoring in portable devices.
Small Appliances
The 28-pin SSOP and 24MHz core provide cost-effective control for blenders, fans, and coffee makers.
Sensor Signal Conditioning
Programmable analog blocks allow amplification and filtering of sensor signals before digital conversion.
LED Lighting Control
PWM outputs and 5V operation drive LED dimming and color mixing in architectural lighting.
- Q: What is the core processor in the CY8C29466-24PVXI?
- A: It uses the M8C core, running at up to 24MHz.
- Q: What is the memory size?
- A: It has 32KB of flash and 2KB of SRAM.
- Q: What is the supply voltage range?
- A: The device operates from 3V to 5.25V, making it compatible with 5V logic.
- Q: What package is this available in?
- A: It comes in a 28-pin SSOP package with a 5.30mm width.
