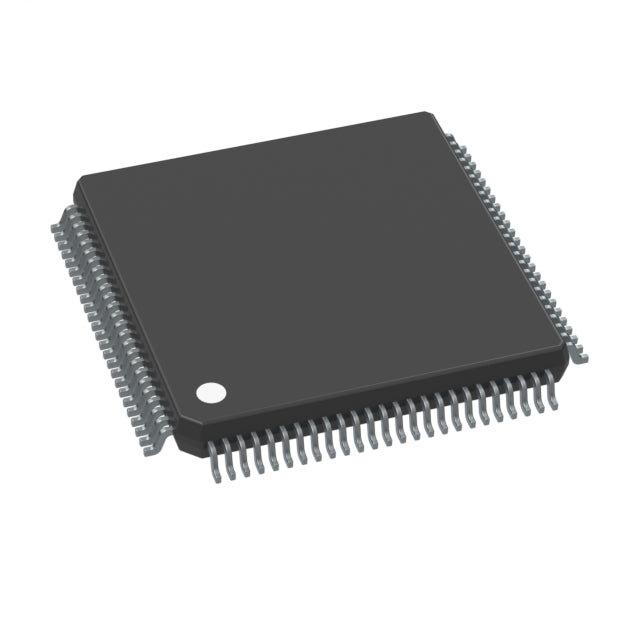

Infineon Technologies CY8C3866AXA-055
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,887.50 | Dhs. 355,887.50 |
| 15+ | Dhs. 344,648.95 | Dhs. 5,169,734.25 |
| 25+ | Dhs. 337,156.58 | Dhs. 8,428,914.50 |
| 50+ | Dhs. 318,425.66 | Dhs. 15,921,283.00 |
| 100+ | Dhs. 280,963.82 | Dhs. 28,096,382.00 |
| N+ | Dhs. 56,192.76 | Price Inquiry |
Request Quote / Inquiry
CY8C3866AXA-055 - High-Performance PSoC 3 Microcontroller
The CY8C3866AXA-055 from Infineon Technologies is a versatile PSoC™ 3 series microcontroller featuring an 8051 core processor running at 67MHz. This programmable system-on-chip combines a microcontroller with integrated analog and digital peripherals, offering exceptional flexibility for embedded system design. With 64KB Flash memory, 8KB RAM, and advanced connectivity options including CANbus, LINbus, I2C, SPI, and UART/USART, this MCU is engineered for demanding industrial and automotive applications.
Key Features & Benefits
- High-Speed Processing: 8-bit 8051 core running at 67MHz for responsive real-time control
- Rich Connectivity: CANbus, LINbus, I2C, SPI, UART/USART interfaces for versatile communication
- Advanced Peripherals: CapSense touch-sensing, DMA, PWM, WDT for sophisticated control applications
- Generous Memory: 64KB Flash program memory, 8KB RAM, 2KB EEPROM for complex firmware
- Flexible I/O: 62 programmable I/O pins for extensive peripheral interfacing
- Wide Voltage Range: 1.71V to 5.5V operation for diverse power supply environments
- Integrated Data Converters: 16x20-bit ADC and 4x8-bit DAC for precision analog signal processing
- Industrial Temperature Range: -40°C to 85°C operation for harsh environments
- Compact Package: 100-TQFP (14x14mm) surface mount package
Typical Applications
- Industrial automation and process control systems
- Automotive body electronics and dashboard controllers
- Motor control and power management applications
- Human-machine interface (HMI) with CapSense touch controls
- Data acquisition and sensor interface systems
- Communication gateways and protocol converters
- Battery-powered and portable instrumentation
- Building automation and HVAC control systems
Why Choose HQICKEY?
At HQICKEY, we guarantee 100% authentic Infineon components with full traceability and long lifecycle availability. Our technical support team provides dedicated engineering assistance for OEMs and system integrators worldwide. All products are RoHS compliant and backed by our quality assurance program.
Related Resources
Explore More Components:
- Browse our complete Microcontrollers collection - Discover MCUs, FPGAs, and embedded processors
- Visit HQICKEY Homepage - Premium semiconductor components for industrial electronics
- Read our Technical Blog - Application notes, design guides, and industry insights
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™ 3 CY8C38xx |
| Packaging | | Tray |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Speed | 67MHz |
| Connectivity | CANbus, EBI/EMI, I2C, LINbus, SPI, UART/USART |
| Peripherals | CapSense, DMA, POR, PWM, WDT |
| Number of I/O | 62 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Data Converters | A/D 16x20b; D/A 4x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TQFP (14x14) |
| Package / Case | 100-LQFP |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
