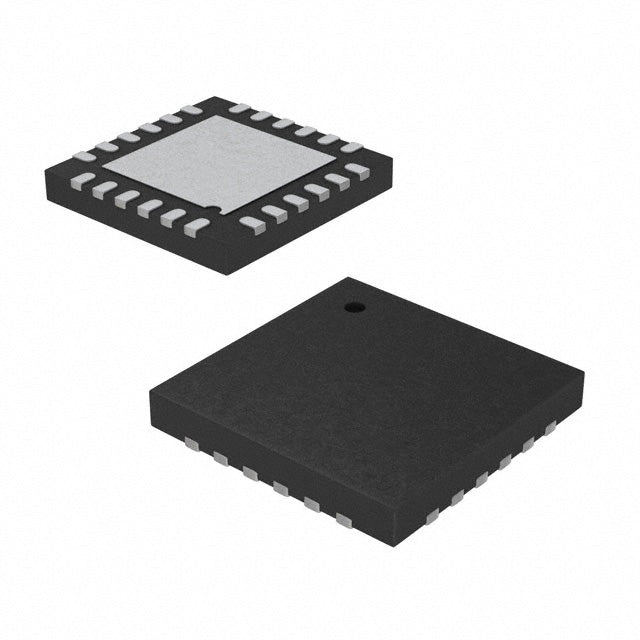

Cypress Semiconductor Corp CY8C4025LQI-S411
Regular price
$6.12
Regular price
$2.22
Sale price
$6.12
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.12 | $6.12 |
| 15+ | $2.04 | $30.60 |
| 25+ | $2.00 | $50.00 |
| 50+ | $1.89 | $94.50 |
| 100+ | $1.67 | $167.00 |
| N+ | $0.33 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Cypress Semiconductor Corp |
| Product Series | PSOC® 4 CY8C4000S |
| Packaging | Bulk | |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 19 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Data Converters | A/D 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-QFN (4x4) |
| Package / Case | 24-UFQFN Exposed Pad |
| ROHS |  |
The CY8C4025LQI-S411 is a 24MHz ARM Cortex-M0+ based PSoC 4 microcontroller with 32KB flash and 4KB RAM. It operates from 1.71V to 5.5V and integrates CapSense, LCD, LVD, POR, PWM, and WDT. The 24-UFQFN package is ideal for advanced human-machine interfaces.
- Integrated CapSense: Eliminates external touch controller.
- Wide voltage range: 1.71-5.5V for versatile power designs.
- ARM core: Industry-standard architecture with rich ecosystem.
- Multi-function: LCD, PWM, and analog in one chip.
Touch Interfaces
Integrated CapSense enables capacitive buttons and sliders without external ICs.
LCD Displays
Built-in LCD driver supports segment displays for consumer panels.
Industrial Sensors
Wide 1.71-5.5V range interfaces with 3.3V and 5V sensors.
Portable Medical
Low power ARM core extends battery life in glucose meters.
Smart Home
24MHz speed and 32KB flash handle Zigbee gateway preprocessing.
Automotive HMI
-40 to 85°C and CapSense suit dashboard touch controls.
- Q: What core does it use?
- A: ARM Cortex-M0+.
- Q: What is the speed?
- A: 24MHz.
- Q: What is the voltage range?
- A: 1.71V to 5.5V.
- Q: Does it support CapSense?
- A: Yes.
- Q: What package?
- A: 24-UFQFN.
Base Product Number ：
CY8C4025
CY8C4025LQI-S411.pdf
- Q: What core does it use?
- A: ARM Cortex-M0+.
- Q: What is the speed?
- A: 24MHz.
- Q: What is the voltage range?
- A: 1.71V to 5.5V.
- Q: Does it support CapSense?
- A: Yes.
- Q: What package?
- A: 24-UFQFN.
×
