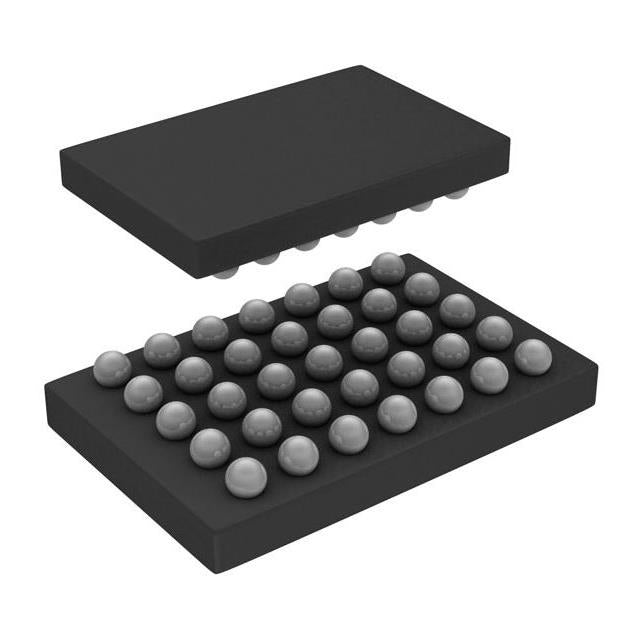

Cypress Semiconductor Corp CY8C4124FNI-443T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.64 | $6.64 |
| 15+ | $1.53 | $22.95 |
| 25+ | $1.49 | $37.25 |
| 50+ | $1.41 | $70.50 |
| 100+ | $1.25 | $125.00 |
| N+ | $0.25 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Cypress Semiconductor Corp |
| Product Series | PSOC® 4 CY8C4100 |
| Packaging | Tape & Reel (TR) | |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 31 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Data Converters | A/D 8x12b SAR; D/A 2xIDAC |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 35-WLCSP (2.58x2.1) |
| Package / Case | 35-XFBGA, WLCSP |
| ROHS |  |
The CY8C4124FNI-443T is a 32-bit ARM Cortex-M0+ MCU from Cypress (Infineon), featuring 16KB Flash and 4KB SRAM in a 35-XFBGA WLCSP package. It operates from 1.71V to 5.5V at 24MHz, with integrated CapSense, LCD drive, and PWM for human-machine interface applications.
- Integrated CapSense eliminates external touch controllers, reducing BOM cost.
- ARM Cortex-M0+ core offers 32-bit performance at low power.
- 35-XFBGA WLCSP package is ideal for ultra-compact designs.
- LCD drive support simplifies display integration.
Touch-Sensitive Interfaces
Integrated CapSense technology enables reliable capacitive buttons and sliders in home appliances without external touch ICs.
Smart Displays
LCD drive support and 24MHz ARM core handle segment LCD control in thermostats and industrial meters.
Battery-Powered Handhelds
1.71V minimum supply and low-power modes extend battery life in remote controls and medical pens.
Wearable Sensors
The tiny 35-XFBGA WLCSP package fits into smart rings and patches, with CapSense for touch input.
Automotive HMI
CapSense and robust reset features support steering wheel controls and center stack panels.
IoT Control Panels
Combines touch, display, and communication in a single MCU for smart home hubs.
- Q: What core does the CY8C4124FNI-443T use?
- A: It uses an ARM Cortex-M0+ core running at 24MHz.
- Q: What is the Flash memory size?
- A: It has 16KB of Flash memory.
- Q: What special feature does it include?
- A: It integrates CapSense touch sensing and LCD drive support.
- Q: What is the operating voltage range?
- A: It operates from 1.71V to 5.5V.
