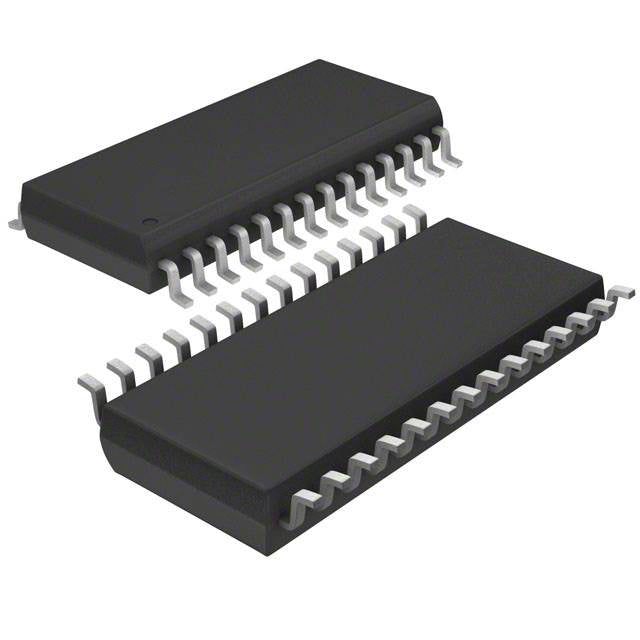

Infineon Technologies CY8C4124PVQ-432
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.49 | $6.49 |
| 15+ | $1.49 | $22.35 |
| 25+ | $1.46 | $36.50 |
| 50+ | $1.38 | $69.00 |
| 100+ | $1.22 | $122.00 |
| N+ | $0.24 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™ 4 CY8C4100 |
| Packaging | Marketplace | Tube |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, LVD, POR, PWM, WDT |
| Number of I/O | 24 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Data Converters | A/D 8x12b SAR; D/A 1x7b, 1x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SSOP |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| ROHS |  |
The Infineon CY8C4124PVQ-432 is a PSoC 4 series MCU with an ARM Cortex-M0 core at 24MHz. It provides 16KB flash and 4KB RAM in a 28-SSOP package. With a wide voltage range of 1.71V to 5.5V and industrial temperature support, it is a versatile choice for cost-sensitive control and sensing applications.
- Wide Voltage Range (1.71V-5.5V): Flexible power supply options, including direct battery connection.
- Integrated LCD Drive: Reduces external components for display applications.
- Compact SSOP Package: Saves board space in dense designs.
- Industrial Temperature Range: Reliable from -40°C to 105°C.
Industrial HMI Panels
PWM and LCD drive enable simple operator interfaces with backlit displays and touch buttons.
Battery-Powered Tools
Wide voltage range (up to 5.5V) allows direct connection to 2-cell Li-ion batteries.
Smart Sensors
24MHz core with 16KB flash processes analog signals for proximity and light sensors.
Consumer Electronics
Compact SSOP package fits in small form-factor devices like e-cigarettes and smart plugs.
Automotive Aftermarket
105°C rating supports under-hood applications like window controllers and mirror adjusters.
Medical Devices
Low power consumption and 1.71V operation suit portable infusion pumps and monitors.
- Q: What is the CPU speed?
- A: The ARM Cortex-M0 core runs at up to 24MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 5.5V.
- Q: What is the program memory size?
- A: It has 16KB of flash memory (16K x 8).
- Q: What package is available?
- A: It comes in a 28-pin SSOP package (5.30mm width).
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 105°C.
