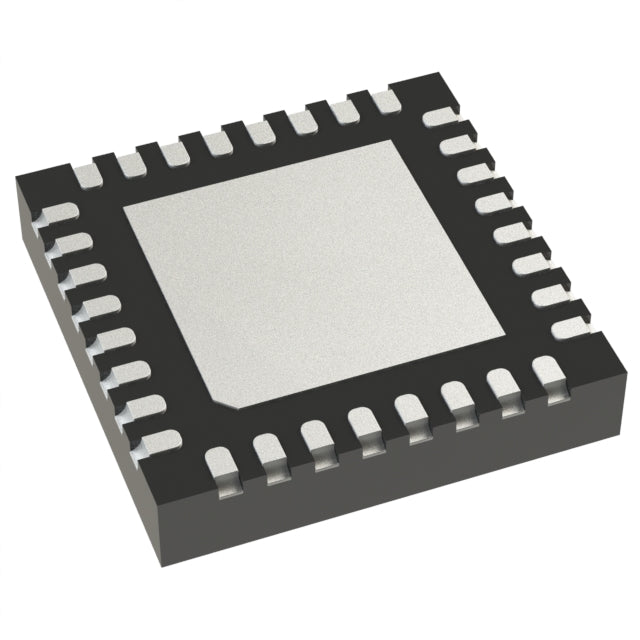

Infineon Technologies CY8C4127LCE-HV413
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $22.56 | $22.56 |
| 15+ | $5.19 | $77.85 |
| 25+ | $5.08 | $127.00 |
| 50+ | $4.79 | $239.50 |
| 100+ | $4.23 | $423.00 |
| N+ | $0.85 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™ 4 HV PA |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 24.576MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 9 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 8K x 8 |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 32-QFN (6x6) |
| Package / Case | 32-VFQFN Exposed Pad |
| ROHS |  |
The Infineon CY8C4127LCE-HV413 is a PSoC 4 microcontroller built on the ARM Cortex-M0+ core, operating at up to 24.576MHz. It provides 128KB of flash and 8KB of SRAM, with a supply range of 3V to 3.6V. This MCU integrates essential peripherals including PWM, DMA, brown-out reset, and a temperature sensor, all in a space-saving 32-VFQFN package designed for extended temperature operation.
- High-temperature resilience: Rated for -40°C to 125°C, suitable for automotive and industrial environments.
- Efficient data handling: DMA controller offloads the CPU for sensor data transfers.
- Compact integration: 32-VFQFN package saves board space without sacrificing I/O capability.
- Reliable operation: Brown-out detect and watchdog timer ensure system stability.
Industrial Sensor Hub
Process analog signals from multiple sensors with the integrated DMA and PWM, ensuring low-latency data acquisition in harsh thermal environments up to 125°C.
Motor Control for Small Appliances
Generate precise PWM waveforms for brushless DC motors while the watchdog timer and brown-out reset maintain safe operation under fluctuating 3.3V supplies.
Portable Medical Monitors
Leverage the low-power ARM Cortex-M0+ core and temp sensor for continuous patient vitals monitoring, with 128KB flash for complex algorithms.
Smart Lighting Controllers
Drive LED dimming curves with the 24.576MHz clock and PWM channels, while the POR ensures reliable startup in retrofit installations.
Automotive Body Electronics
Withstand extreme temperatures and voltage transients using the built-in brown-out detection, ideal for interior lighting and seat control modules.
HVAC Zone Controllers
Manage multiple temperature zones with the integrated temp sensor and DMA for efficient data logging, all within a compact 32-VFQFN footprint.
- Q: What is the operating voltage range?
- A: 3V to 3.6V.
- Q: What core does it use?
- A: ARM Cortex-M0+ at 24.576MHz.
- Q: What is the program memory size?
- A: 128KB flash.
- Q: What package is available?
- A: 32-VFQFN exposed pad.
- Q: What is the temperature range?
- A: -40°C to 125°C.
