Infineon Technologies CY8C4127LTI-M475
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.79 | $5.79 |
| 15+ | $5.60 | $84.00 |
| 25+ | $5.48 | $137.00 |
| 50+ | $5.18 | $259.00 |
| 100+ | $4.57 | $457.00 |
| N+ | $0.91 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™ 4 CY8C41xx - M |
| Packaging | Marketplace | Tray |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 55 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Data Converters | A/D 16x12b SAR; 2xIDAC |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

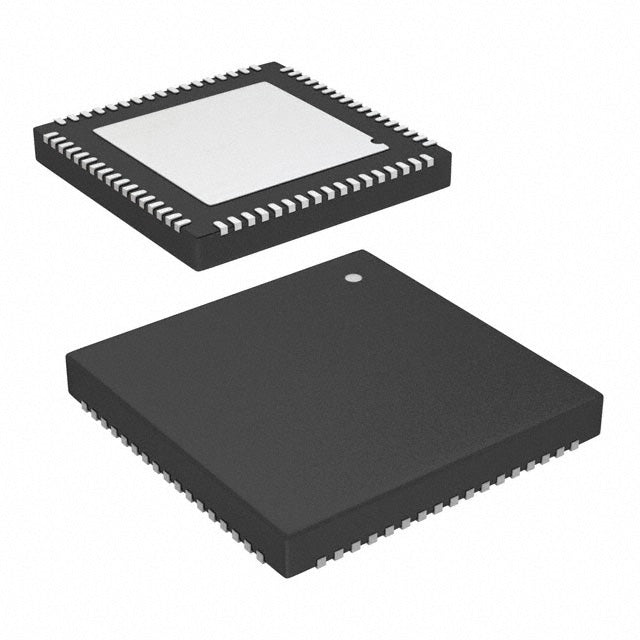

| Supplier Device Package | 68-QFN (8x8) |
| Package / Case | 68-VFQFN Exposed Pad |
| ROHS |  |
The Infineon CY8C4127LTI-M475 is a PSoC 4 series MCU featuring an ARM Cortex-M0 core at 24MHz. It provides 128KB flash and 16KB SRAM, along with integrated CapSense, LCD drive, and programmable analog blocks. Housed in a compact 68-VFQFN package, it operates from 1.71V to 5.5V, making it suitable for human-machine interfaces and industrial control.
- Integrated CapSense: Eliminates external touch ICs, lowering system cost and PCB area.
- Wide Voltage Range: Supports 1.71V to 5.5V, enabling direct battery or 5V rail operation.
- Flexible Analog: Programmable analog blocks allow custom signal conditioning without op-amps.
- Low Power: Multiple sleep modes extend battery life in portable designs.
Capacitive Touch Interfaces
Leverage the integrated CapSense block to implement reliable touch buttons, sliders, and proximity sensors without external components, reducing BOM cost.
Battery-Powered Devices
With a wide 1.71V to 5.5V supply range and low-power modes, this MCU is ideal for portable instruments and remote controls.
LCD Display Control
The built-in LCD driver simplifies segment LCD interfacing for consumer appliances and industrial panels.
Motor Control
PWM timers and a 24MHz Cortex-M0 core enable efficient brushless DC motor control in small appliances.
Industrial Sensing
Brown-out detection and watchdog timer ensure robust operation in noisy industrial environments.
Smart Home Hubs
Combine CapSense, PWM, and serial communication to create intuitive control panels for lighting and HVAC systems.
- Q: What is the operating voltage range of the CY8C4127LTI-M475?
- A: It operates from 1.71V to 5.5V, supporting both low-power and standard applications.
- Q: Does this MCU support capacitive touch sensing?
- A: Yes, it includes integrated CapSense technology for touch and proximity sensing.
- Q: What is the maximum CPU speed?
- A: The ARM Cortex-M0 core runs at up to 24MHz.
- Q: What package is available?
- A: It comes in a 68-VFQFN exposed pad package.
