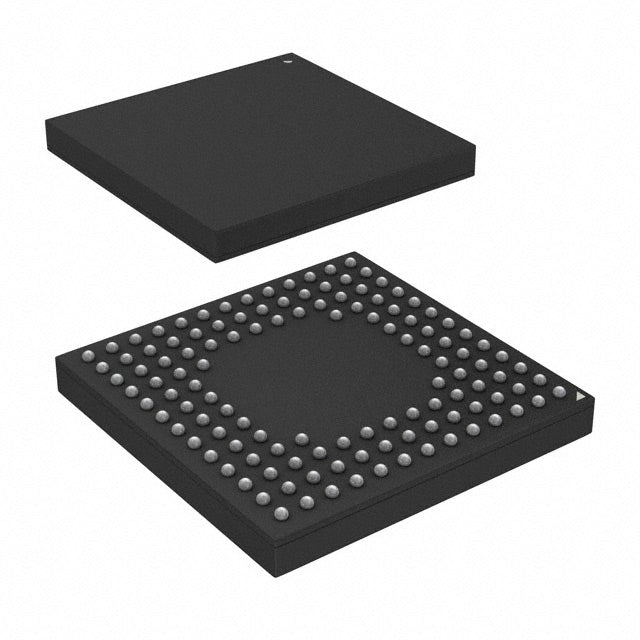

Infineon Technologies CY8C4247BZI-L489
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $30.92 | $30.92 |
| 15+ | $7.11 | $106.65 |
| 25+ | $6.96 | $174.00 |
| 50+ | $6.57 | $328.50 |
| 100+ | $5.80 | $580.00 |
| N+ | $1.16 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™ 4 CY8C42xx-L |
| Packaging | Marketplace | Tray |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, Cap Sense, DMA, LCD, LVD, POR, PWM, SmartSense, WDT |
| Number of I/O | 98 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Data Converters | A/D 16x12b SAR; D/A 4x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 124-VFBGA (9x9) |
| Package / Case | 124-VFBGA |
| ROHS |  |
The Infineon CY8C4247BZI-L489 is a PSoC 4 series MCU featuring an ARM Cortex-M0 core at 48MHz. It provides 128KB flash and 16KB SRAM, with integrated CapSense, LCD drive, and programmable analog blocks. Its 1.71V to 5.5V supply range and 124-VFBGA package make it suitable for compact, low-power embedded designs.
- Integrated CapSense: Eliminates external touch ICs, reducing BOM cost and board space.
- Wide voltage range (1.71V-5.5V): Simplifies power supply design for battery or USB-powered systems.
- Programmable analog: Flexible op-amps and comparators enable custom sensor interfaces without extra components.
- DMA controller: Offloads data transfer from CPU, improving real-time performance.
Capacitive Touch Control Panels
Leverage CapSense and SmartSense for robust, noise-immune touch buttons and sliders in appliances and industrial HMI.
Portable Medical Devices
Low 1.71V operation and DMA enable energy-efficient data logging and sensor monitoring in battery-powered health monitors.
LCD Display Controllers
Integrated LCD driver support simplifies segmented display management in consumer electronics and instrumentation.
Motor Control for Small Appliances
PWM timers and WDT provide reliable commutation and fault handling for brushless DC motors in fans and pumps.
Smart Sensor Nodes
Combine analog sensing, DMA, and low-power modes for edge processing in IoT and building automation.
Automotive Interior Lighting
Wide voltage range and -40°C to 85°C operation suit LED control modules in vehicle cabins.
- Q: What is the operating voltage range of the CY8C4247BZI-L489?
- A: It operates from 1.71V to 5.5V, supporting flexible power designs.
- Q: Does this MCU support capacitive touch sensing?
- A: Yes, it includes CapSense and SmartSense technology for reliable touch interfaces.
- Q: What is the maximum CPU speed?
- A: The ARM Cortex-M0 core runs at up to 48MHz.
- Q: What package is available?
- A: It comes in a 124-VFBGA package.
