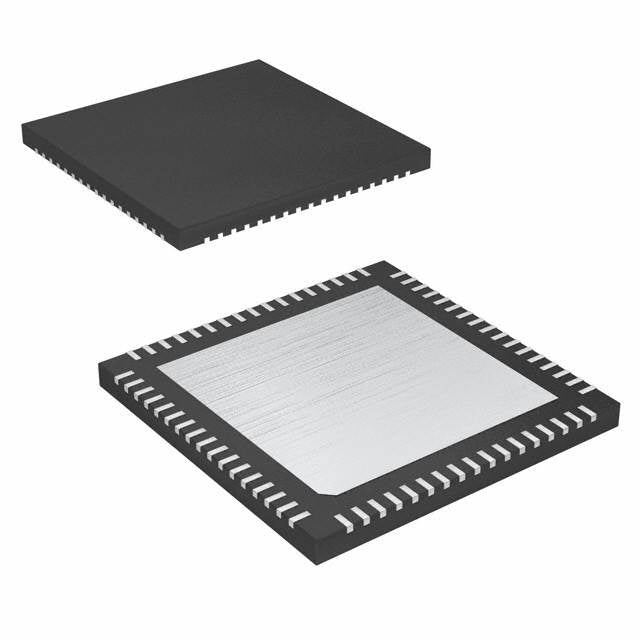

Cypress Semiconductor Corp CY8C5268LTI-LP030
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $33.12 | $33.12 |
| 15+ | $11.67 | $175.05 |
| 25+ | $11.41 | $285.25 |
| 50+ | $10.78 | $539.00 |
| 100+ | $9.51 | $951.00 |
| N+ | $1.90 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Cypress Semiconductor Corp |
| Product Series | PSOC® 5 CY8C52LP |
| Packaging | Bulk | |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 67MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART, USB |
| Peripherals | CapSense, DMA, LCD, POR, PWM, WDT |
| Number of I/O | 38 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Data Converters | A/D 1x12b; D/A 1x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 68-QFN (8x8) |
| Package / Case | 68-VFQFN Exposed Pad |
| ROHS |  |
The CY8C5268LTI-LP030 from Cypress (Infineon) is a programmable ARM Cortex-M3 MCU running at 67MHz. It integrates CapSense touch sensing, LCD driver, DMA, and PWM in a 68-VFQFN package. With 256KB flash and 64KB SRAM, it operates from 1.71V to 5.5V, making it ideal for human-machine interface applications.
- Integrated CapSense: Eliminates external touch ICs, reducing cost and design complexity.
- Wide voltage range (1.71V-5.5V): Compatible with both 3.3V and legacy 5V systems.
- LCD support: Direct segment driving saves external display drivers.
- Exposed pad package: Improved thermal dissipation for reliable operation.
Touch-Sensitive Control Panels
Integrated CapSense replaces mechanical buttons, enabling waterproof and durable user interfaces.
White Goods Displays
LCD driver and 5.5V operation directly interface with segment displays in washing machines.
Portable Instrumentation
Low-power modes and 1.71V operation extend battery life in handheld multimeters.
Smart Lighting Systems
PWM outputs control LED dimming; CapSense provides touch dimmer functionality.
Industrial Keypads
CapSense works through gloves and plastic overlays, ideal for factory floor equipment.
Medical Device Interfaces
Easy-to-clean touch surfaces meet hygiene requirements in patient monitors.
- Q: What is unique about this MCU?
- A: It integrates CapSense touch sensing and LCD drive.
- Q: What voltage range does it support?
- A: 1.71V to 5.5V, covering both 3.3V and 5V systems.
- Q: What is the core and speed?
- A: ARM Cortex-M3 at 67MHz.
- Q: What package is available?
- A: 68-pin VFQFN with exposed pad for thermal management.
