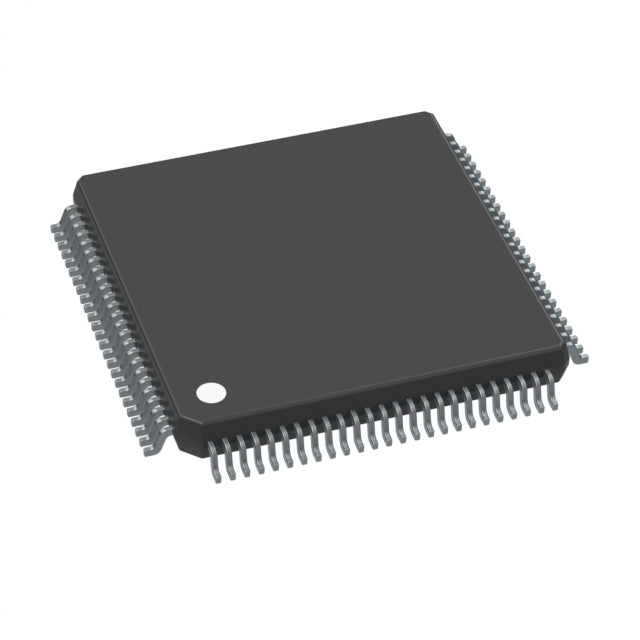

Infineon Technologies CY8C5688AXI-LP099
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.59 | $19.59 |
| 15+ | $18.97 | $284.55 |
| 25+ | $18.56 | $464.00 |
| 50+ | $17.53 | $876.50 |
| 100+ | $15.47 | $1,547.00 |
| N+ | $3.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™ 5 CY8C56LP |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 80MHz |
| Connectivity | CANbus, I2C, LINbus, SPI, UART/USART, USB |
| Peripherals | CapSense, DMA, LCD, POR, PWM, WDT |
| Number of I/O | 62 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Data Converters | A/D 2x12b; D/A 4x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TQFP (14x14) |
| Package / Case | 100-LQFP |
| ROHS |  |
The Infineon CY8C5688AXI-LP099 is a 32-bit MCU with an ARM Cortex-M3 core running at 80MHz. It features 256KB flash and 64KB RAM, operating from 1.71V to 5.5V. The device includes CapSense, DMA, LCD, POR, PWM, and WDT peripherals. Housed in a 100-LQFP package, it operates from -40°C to 85°C, making it ideal for consumer, industrial, and medical applications.
- Integrated CapSense: Provides reliable touch sensing without external components.
- Ultra-low voltage operation (1.71V): Enables direct battery-powered designs.
- Rich analog/digital peripherals: DMA, LCD, PWM, and WDT for versatile system design.
- Compact 100-LQFP package: Saves PCB space for space-constrained products.
Touch-Sensitive Control Panels
Integrated CapSense eliminates external touch ICs, reducing BOM cost and board space.
Portable Medical Devices
Low voltage (1.71V) and low power extend battery life in glucose meters and pulse oximeters.
Smart Home Thermostats
LCD drive and PWM control display and fan speed, while CapSense handles user input.
Industrial HMI
DMA and PWM enable smooth animations and motor control in operator panels.
Wearable Fitness Trackers
Small 100-LQFP package and 80MHz core support sensor fusion and BLE connectivity.
Automotive Interior Lighting
Wide voltage range and PWM control RGB LEDs for ambient lighting systems.
- Q: What core is used?
- A: ARM Cortex-M3 at 80MHz, balancing performance and power consumption.
- Q: What is the supply voltage range?
- A: 1.71V to 5.5V, supporting low-power and standard logic levels.
- Q: How much flash and RAM are available?
- A: 256KB flash and 64KB RAM for moderate applications.
- Q: What special features are included?
- A: CapSense touch sensing, DMA, LCD drive, POR, PWM, and WDT.
- Q: What package is offered?
- A: 100-LQFP, suitable for compact PCB designs.
