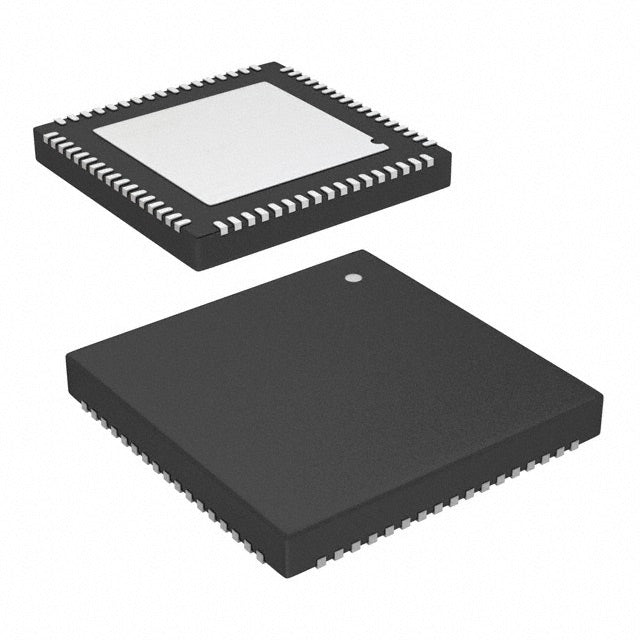

Infineon Technologies CY8C5867LTI-LP025
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.55 | $17.55 |
| 15+ | $16.99 | $254.85 |
| 25+ | $16.62 | $415.50 |
| 50+ | $15.70 | $785.00 |
| 100+ | $13.85 | $1,385.00 |
| N+ | $2.77 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™ 5 CY8C58LP |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 67MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | CapSense, DMA, LCD, POR, PWM, WDT |
| Number of I/O | 38 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Data Converters | A/D 1x20b, 1x12b; D/A 4x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 68-QFN (8x8) |
| Package / Case | 68-VFQFN Exposed Pad |
| ROHS |  |
The CY8C5867LTI-LP025 from Infineon is a programmable system-on-chip (PSoC) based on the ARM Cortex-M3 core, operating at 67 MHz. It features 128 KB of flash memory and 32 KB of RAM. This MCU integrates CapSense touch sensing, LCD support, and DMA in a compact 68-VFQFN package. Its wide supply voltage range from 1.71V to 5.5V makes it highly adaptable for various embedded applications.
- Integrated CapSense: Provides robust touch sensing without external components, reducing BOM cost and design complexity.
- Wide Voltage Range: Operates from 1.71V to 5.5V, supporting both low-power and standard logic systems.
- Programmable Analog: The PSoC architecture allows flexible configuration of analog peripherals for custom signal processing.
- Compact Package: The 68-VFQFN package with exposed pad offers excellent thermal performance in a small footprint.
Touch-Sensitive Control Panels
The integrated CapSense technology allows for reliable, waterproof touch interfaces in appliances and industrial equipment.
Portable Health Monitors
Its low power consumption and wide voltage range make it ideal for battery-powered fitness trackers and health sensors.
Smart Lighting Systems
With PWM and analog capabilities, it can control LED brightness and color temperature in smart lighting solutions.
Industrial Sensor Hubs
The multiple communication interfaces and DMA support efficient data aggregation from various industrial sensors.
Consumer Electronics
Its small package and CapSense make it perfect for wearables, remote controls, and smart home devices.
Automotive Interior Controls
The wide voltage range and robust design support interior lighting and touch controls in automotive environments.
- Q: What is the core processor of the CY8C5867LTI-LP025?
- A: It is based on the ARM Cortex-M3 core, running at up to 67 MHz.
- Q: What is the supply voltage range?
- A: It supports a wide range from 1.71V to 5.5V, making it flexible for various power sources.
- Q: Does it support capacitive sensing?
- A: Yes, it includes CapSense technology for touch sensing applications.
- Q: How much flash memory does it have?
- A: It provides 128 KB of flash memory for program storage.
- Q: What is the package type?
- A: It comes in a 68-pin VFQFN package with exposed pad for thermal management.
