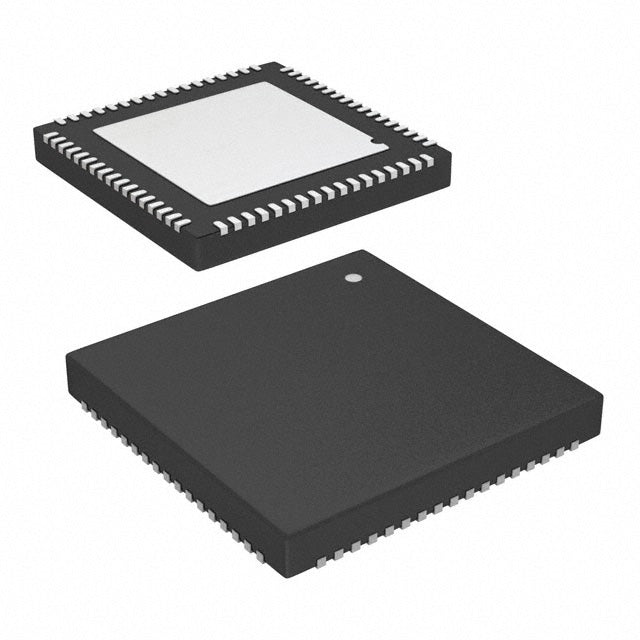

Infineon Technologies CY8C5867LTI-LP028
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.66 | $18.66 |
| 15+ | $18.07 | $271.05 |
| 25+ | $17.68 | $442.00 |
| 50+ | $16.69 | $834.50 |
| 100+ | $14.73 | $1,473.00 |
| N+ | $2.95 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™ 5 CY8C58LP |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 67MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART, USB |
| Peripherals | CapSense, DMA, LCD, POR, PWM, WDT |
| Number of I/O | 38 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Data Converters | A/D 1x20b, 1x12b; D/A 4x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 68-QFN (8x8) |
| Package / Case | 68-VFQFN Exposed Pad |
| ROHS |  |
The CY8C5867LTI-LP028 from Infineon is a PSoC 5LP programmable system-on-chip featuring an ARM Cortex-M3 core at 67MHz. It integrates CapSense touch sensing, DMA, LCD drive, and rich analog/digital peripherals in a compact 68-VFQFN package. With a supply range of 1.71V to 5.5V and 128KB flash, it suits industrial, medical, and consumer applications requiring flexible mixed-signal processing.
- Integrated CapSense: Eliminates external touch ICs, reducing BOM cost and board space.
- Wide voltage range (1.71V-5.5V): Simplifies power design across battery and industrial supplies.
- Programmable analog/digital blocks: Enables custom peripherals without external components.
- Low-power operation: Ideal for battery-powered portable devices.
Industrial Touch Panels
CapSense plus 67MHz Cortex-M3 enables responsive, low-latency touch interfaces for HMI panels.
Portable Medical Devices
1.71V operation and low-power modes extend battery life in glucose meters and pulse oximeters.
Smart Home Controllers
DMA and PWM support multi-channel LED dimming and sensor polling without CPU overhead.
Automotive Interior Lighting
Wide voltage range (up to 5.5V) handles direct battery connection with integrated POR and WDT for safety.
Data Acquisition Systems
32KB RAM buffers high-speed ADC samples; LCD driver simplifies local display.
Motor Control for Small Appliances
PWM modules generate precise waveforms for BLDC and brushed DC motors.
- Q: What is the operating voltage range?
- A: 1.71V to 5.5V, supporting both low-power and standard applications.
- Q: Does it support capacitive sensing?
- A: Yes, integrated CapSense technology enables touch and proximity sensing.
- Q: What package is available?
- A: 68-VFQFN exposed pad package for compact PCB designs.
- Q: What is the maximum CPU speed?
- A: 67MHz with ARM Cortex-M3 core.
