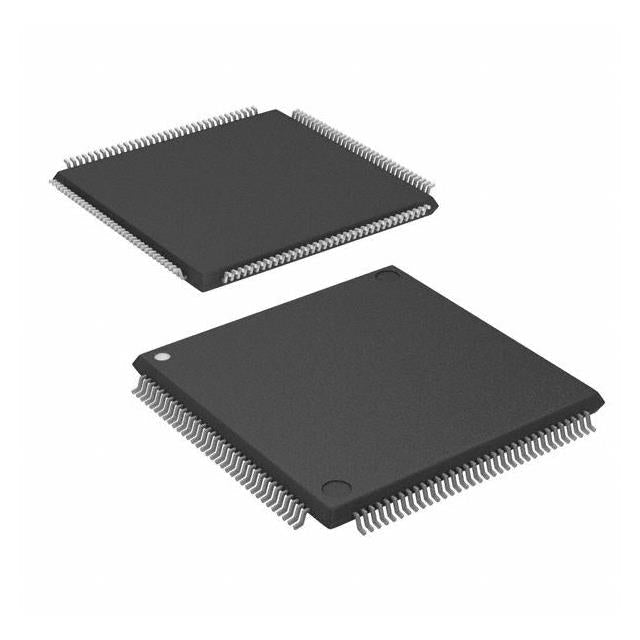

Infineon Technologies CY9BF116SPMC-GK7E1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.52 | $11.52 |
| 15+ | $11.16 | $167.40 |
| 25+ | $10.92 | $273.00 |
| 50+ | $10.31 | $515.50 |
| 100+ | $9.10 | $910.00 |
| N+ | $1.82 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | FM3 MB9B110T |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 144MHz |
| Connectivity | CSIO, EBI/EMI, I2C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 122 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 24x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Package / Case | 144-LQFP |
| ROHS |  |
The CY9BF116SPMC-GK7E1 from Infineon is a powerful 32-bit microcontroller based on the ARM Cortex-M3 core, operating at up to 144MHz. It features 512KB flash and 64KB RAM, with a supply voltage range of 2.7V to 5.5V. Packaged in a 144-LQFP, it is designed for industrial and consumer applications requiring high performance and reliability. Its rich peripheral set includes DMA, LVD, POR, PWM, and WDT, making it a versatile solution for complex embedded systems.
- High-speed processing: 144MHz Cortex-M3 delivers fast response for real-time control.
- Wide voltage operation: 2.7V-5.5V supports both 3.3V and 5V systems.
- Large flash memory: 512KB allows storing complex firmware and data tables.
- Advanced PWM: Ideal for motor control and power conversion applications.
- Robust design: Infineon's quality ensures long-term reliability in industrial settings.
Industrial Motor Drives
The 144MHz Cortex-M3 with advanced PWM timers enables high-frequency control of AC induction and BLDC motors in variable frequency drives.
Building Automation
With 512KB flash, it can run complex BACnet or Modbus stacks for HVAC controllers, lighting systems, and access control panels.
Robotics
High-speed processing and multiple communication interfaces support real-time kinematics and sensor fusion for collaborative robots.
Smart Grid Equipment
The wide voltage range and robust peripherals make it suitable for power line communication modems and smart meter concentrators.
Medical Monitoring
Its processing power and memory handle patient monitoring algorithms, while the 5V operation simplifies analog front-end design.
Test and Measurement
Fast ADC and DMA capabilities allow high-speed data acquisition for oscilloscopes and data loggers.
- Q: What core does the CY9BF116SPMC-GK7E1 use?
- A: It is based on the ARM Cortex-M3 core.
- Q: What is the maximum clock speed?
- A: It runs at up to 144MHz.
- Q: How much flash and RAM are included?
- A: It has 512KB flash and 64KB RAM.
- Q: What is the supply voltage range?
- A: It operates from 2.7V to 5.5V.
- Q: What package is available?
- A: It comes in a 144-LQFP package.
