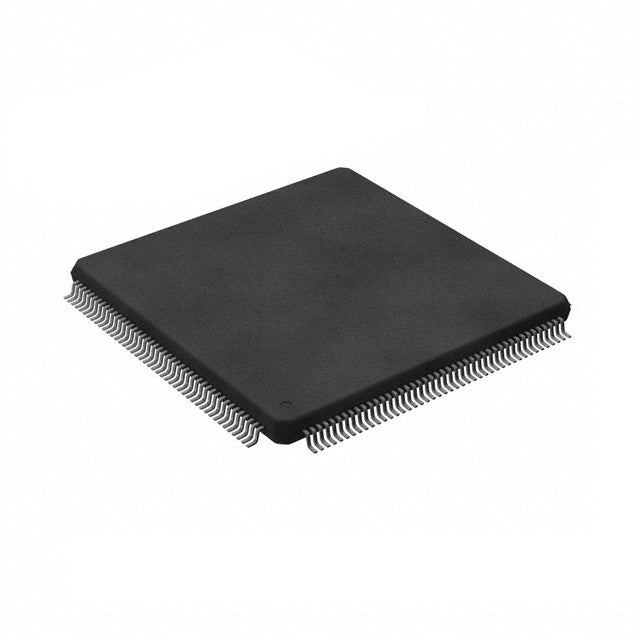

Infineon Technologies CYT2B78CADQ0AZEGS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.38 | $8.38 |
| 15+ | $8.11 | $121.65 |
| 25+ | $7.94 | $198.50 |
| 50+ | $7.50 | $375.00 |
| 100+ | $6.62 | $662.00 |
| N+ | $1.32 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | Traveo CYT2B7 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M0+/M4F |
| Core Size | 32-Bit Dual-Core |
| Speed | 100MHz, 160MHz |
| Connectivity | CANbus, EBI/EMI, I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 128 |
| Program Memory Size | 1.0625MB (1.0625M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 96K x 8 |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 82x12b SAR |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP |
| ROHS |  |
The Infineon CYT2B78CADQ0AZEGS is a high-performance automotive MCU featuring a dual-core ARM Cortex-M0+/M4F design. It delivers up to 160MHz processing speed with 1.0625MB flash and 128KB RAM. Operating from 2.7V to 5.5V, it includes robust safety features like brown-out detection, POR, and WDT. Housed in a 176-LQFP package, it is ideal for demanding applications requiring real-time control and extended temperature ranges.
- Dual-core performance: M4F at 160MHz for compute-intensive tasks, M0+ for low-power I/O handling, improving overall efficiency.
- Wide voltage range: 2.7V-5.5V eliminates external regulators in many automotive and industrial designs.
- High-temperature capability: 125°C rating ensures reliable operation under hood or in industrial enclosures.
- Large memory footprint: 1MB+ flash supports complex firmware and OTA updates without external storage.
Automotive Body Control Modules
The dual-core architecture with 160MHz M4F handles complex body control algorithms while the M0+ manages communication, ensuring real-time response.
Industrial Motor Control
With PWM timers and 5.5V operation, it directly interfaces with industrial sensors and drives MOSFETs without level shifters, simplifying BOM.
Smart Sensor Hubs
The 1MB flash allows storing multiple sensor fusion algorithms, while DMA offloads data transfer from the CPU for low-latency processing.
Battery Management Systems
Its 2.7V low-voltage operation supports deep discharge states, and the brown-out detector ensures safe shutdown during undervoltage.
Human-Machine Interface (HMI) Controllers
The 176-LQFP package provides ample GPIOs for capacitive touch sensing and display control, with the M4F handling graphics rendering.
Robotics and Drones
The 125°C rating and WDT ensure reliable operation in thermally challenging environments, while the dual-core allows parallel control and telemetry.
- Q: What is the operating voltage range of the CYT2B78CADQ0AZEGS?
- A: It operates from 2.7V to 5.5V, suitable for automotive and industrial power rails.
- Q: What core does this MCU use?
- A: It uses a dual-core ARM Cortex-M0+ and Cortex-M4F, running at 100MHz and 160MHz respectively.
- Q: How much flash and RAM does it have?
- A: It has 1.0625MB flash and 128KB RAM.
- Q: What package is available?
- A: It comes in a 176-pin LQFP package.
- Q: What is the temperature range?
- A: It is rated for -40°C to 125°C ambient.
