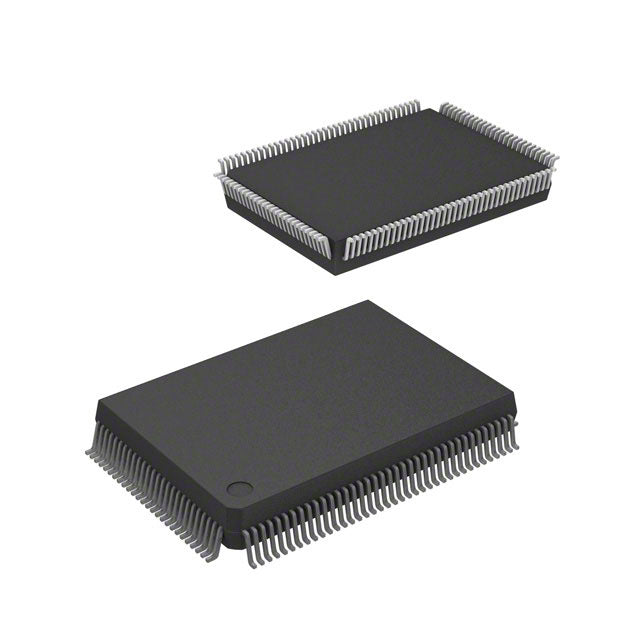

Renesas Electronics Corporation D12394F20V
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | H8® H8S/2300 |
| Packaging | | Tray |
| Core Processor | H8S/2000 |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | SCI, SmartCard |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 87 |
| Program Memory Size | - |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 128-QFP (14x20) |
| Package / Case | 128-BFQFP |
| ROHS |  |
Product Overview
The D12394F20V is a high-performance 16-bit microcontroller from Renesas Electronics' renowned H8S/2300 series. Engineered for demanding embedded applications, this ROMless MCU operates at 20MHz and features 32KB of RAM, making it ideal for industrial automation, automotive systems, and IoT devices.
Key Features & Benefits
- High-Speed Processing: 20MHz H8S/2000 core processor delivers reliable performance for real-time applications
- Extensive I/O Capabilities: 87 programmable I/O ports provide maximum flexibility for peripheral connections
- Advanced Connectivity: Built-in SCI and SmartCard interfaces enable seamless communication
- Rich Peripheral Set: Integrated DMA, POR, PWM, and WDT enhance system functionality
- Precision Data Conversion: 8-channel 10-bit A/D and 2-channel 8-bit D/A converters for accurate signal processing
- Flexible Memory Architecture: ROMless design allows external memory configuration for custom applications
- Wide Operating Range: Functions reliably from -20°C to 75°C with 4.5V to 5.5V supply voltage
- Compact Surface Mount Package: 128-BFQFP (14x20mm) footprint optimizes board space
- RoHS Compliant: Environmentally friendly design meets international standards
Applications
Perfect for industrial control systems, automotive electronics, smart card readers, motor control, data acquisition systems, and embedded IoT solutions.
