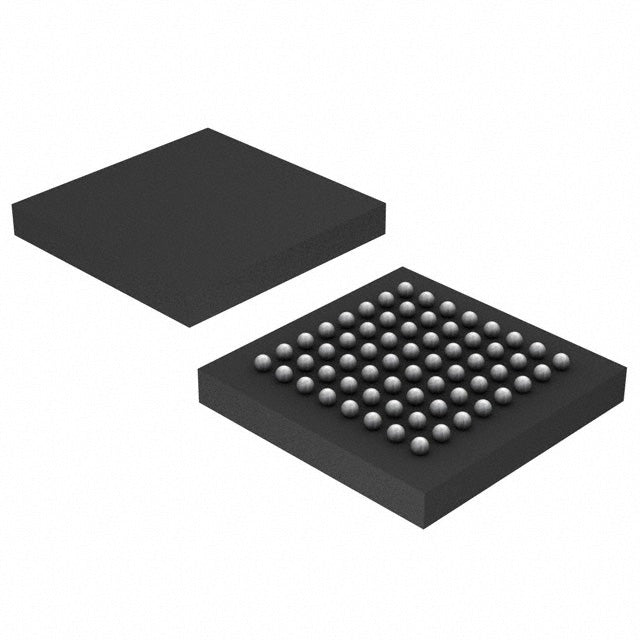

Texas Instruments DDC316CZXGR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $82.99 | $82.99 |
| 15+ | $80.37 | $1,205.55 |
| 25+ | $78.62 | $1,965.50 |
| 50+ | $74.26 | $3,713.00 |
| 100+ | $65.52 | $6,552.00 |
| N+ | $13.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 16 |
| Input Type | Single Ended |
| Data Interface | Serial |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 4 |
| Architecture | - |
| Reference Type | External |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | Simultaneous Sampling |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 64-LFBGA |
| Supplier Device Package | 64-NFBGA (8x8) |
| ROHS |  |
The DDC316CZXGR is a high-performance 16-bit Analog-to-Digital Converter from Texas Instruments, designed for multi-channel precision sensing applications. With a sampling rate of 100k SPS and 16 input channels, it efficiently digitizes multiple analog signals with excellent accuracy. The serial interface simplifies system integration, while the external reference allows for precise voltage scaling. Housed in a compact 64-LFBGA package, this ADC is well-suited for data acquisition, industrial automation, and medical instrumentation where high channel density and resolution are critical.
- High Channel Density: 16 input channels in a single package reduce board space and system cost for multi-sensor applications.
- 16-Bit Precision: Delivers high-resolution conversion essential for accurate measurement in scientific and medical equipment.
- Efficient Serial Interface: Simplifies PCB routing and enables easy isolation, reducing design complexity.
- External Reference Support: Allows users to optimize the voltage range for specific sensor outputs, improving measurement accuracy.
Multi-Channel Data Acquisition Systems
The DDC316CZXGR's 16 channels and 100k SPS sampling rate make it ideal for high-density data acquisition systems where multiple analog signals need to be digitized simultaneously with 16-bit precision.
Medical Instrumentation
In medical devices like patient monitoring systems, the 16-bit resolution ensures accurate reading of vital signs. The serial interface simplifies isolation and reduces wiring complexity in sensitive medical environments.
Industrial Automation
For industrial process control, this ADC can monitor multiple sensors (temperature, pressure, flow) with its 16-channel input, providing reliable 16-bit data for precise automation decisions.
Scientific Instrumentation
Laboratory equipment requiring high-resolution multi-channel measurements, such as spectrometers or particle detectors, benefit from the DDC316CZXGR's 100k SPS throughput and external reference support for calibration flexibility.
Test and Measurement Equipment
In automated test equipment (ATE), the 16-channel configuration allows simultaneous sampling of multiple test points, improving test throughput while maintaining 16-bit accuracy.
- Q: What type of ADC is the DDC316CZXGR?
- A: It is a 16-bit Analog-to-Digital Converter (ADC) with a successive approximation architecture.
- Q: What is the resolution of this ADC?
- A: The DDC316CZXGR offers 16-bit resolution for high-precision measurements.
- Q: What is the sampling rate?
- A: It supports a sampling rate of 100k SPS (samples per second).
- Q: How many channels does it have?
- A: This ADC features 16 input channels for multi-signal acquisition.
- Q: What interface does it use?
- A: It uses a Serial interface for data output.
- Q: What is the package type?
- A: It comes in a 64-LFBGA package.
