Renesas Electronics Corporation DF2138RFA20JV
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $144.24 | $144.24 |
| 15+ | $33.18 | $497.70 |
| 25+ | $32.45 | $811.25 |
| 50+ | $30.65 | $1,532.50 |
| 100+ | $27.05 | $2,705.00 |
| N+ | $5.41 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | H8® H8S/2100 |
| Packaging | Bulk | Bulk |
| Core Processor | H8S/2000 |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | Host Interface, I2C, IrDA, SCI |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 58 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Oscillator Type | External |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-QFP (14x14) |
| Package / Case | 80-BQFP |

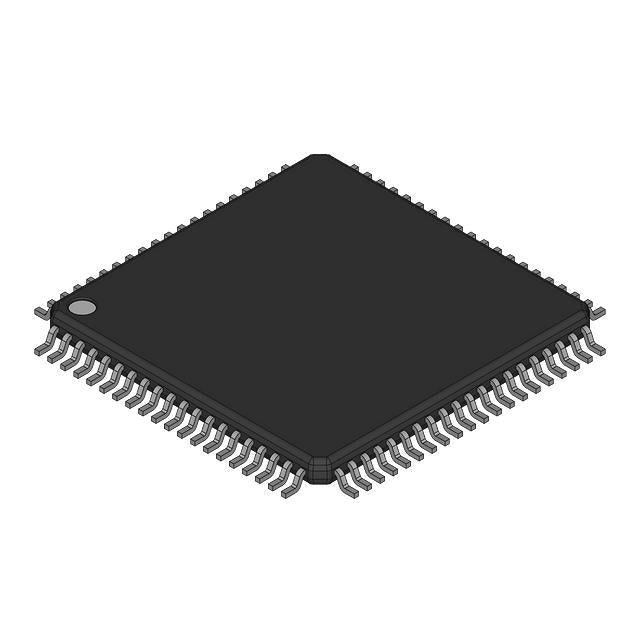

The Renesas DF2138RFA20JV is a 16-bit microcontroller based on the H8S/2000 core, operating at 20MHz. It features 128KB of flash memory and 4KB of RAM, with a supply voltage range of 2.7V to 3.6V. The MCU includes POR, PWM, and WDT features for robust operation. Packaged in an 80-BQFP, it operates from -20°C to 75°C, making it suitable for consumer, industrial, and automotive aftermarket applications.
- Proven architecture: H8S/2000 core with extensive legacy software support reduces development time.
- Low power operation: 2.7V-3.6V range enables battery-powered designs.
- Compact package: 80-BQFP saves board space for space-constrained applications.
- Integrated features: POR, PWM, and WDT reduce external component count.
Consumer Electronics Control
20MHz H8S/2000 core with 128KB flash handles user interface and device control in home appliances.
Industrial Sensor Interfaces
PWM and WDT features support sensor data acquisition and actuator control in factory automation.
Automotive Aftermarket Devices
2.7V-3.6V operation and -20°C to 75°C range suit car audio and dashboard accessories.
Medical Monitoring Devices
Low power consumption and POR ensure reliable operation in portable health monitors.
Building Automation Controllers
128KB flash stores HVAC control algorithms, while 4KB RAM handles real-time scheduling.
Point-of-Sale Terminals
Reliable operation and compact 80-BQFP package enable space-efficient payment systems.
- Q: What is the core processor?
- A: H8S/2000 series.
- Q: What is the operating frequency?
- A: 20MHz.
- Q: What is the program memory size?
- A: 128KB flash.
- Q: What is the supply voltage range?
- A: 2.7V to 3.6V.
- Q: What package is available?
- A: 80-BQFP.
