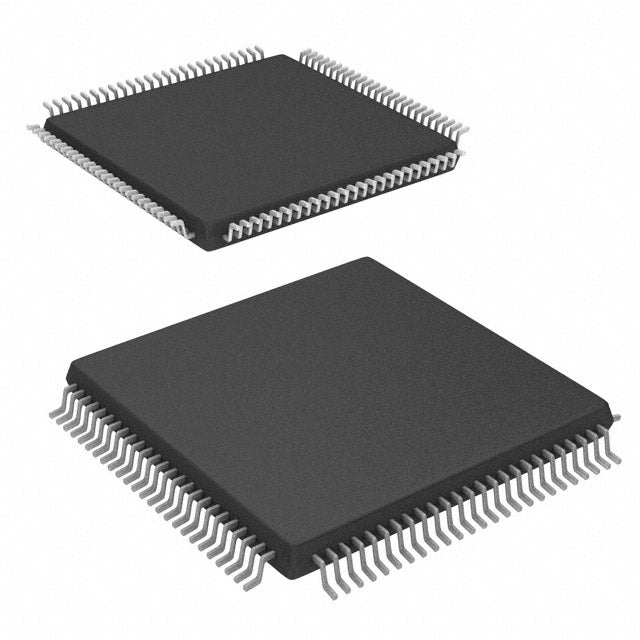

Renesas Electronics Corporation DF2148BTE20V
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | H8® H8S/2100 |
| Packaging | | Tray |
| Core Processor | H8S/2000 |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | I2C, IrDA, SCI, X-Bus |
| Peripherals | PWM, WDT |
| Number of I/O | 74 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TQFP (14x14) |
| Package / Case | 100-TQFP |
| ROHS |  |
The Renesas DF2148BTE20V is a 16-bit microcontroller based on the H8S/2000 core. Operating at 20MHz with 128KB flash and 4K RAM, it provides a cost-effective solution for 5V applications. Its 100-TQFP package and -20°C to 75°C range make it suitable for consumer and industrial products.
- 5V operation: Simplifies interface with legacy analog sensors and actuators.
- 128KB flash: Sufficient for mid-complexity firmware without external memory.
- PWM and WDT: Built-in peripherals reduce external component count.
- 100-TQFP package: Compact footprint for space-limited PCB designs.
Automotive Engine Control
5V operation and 20MHz speed handle fuel injection timing and ignition control in entry-level ECUs.
Industrial Sensors
128KB flash and PWM support signal conditioning and output generation for pressure/temperature sensors.
Home Appliances
Reliable 5V logic and WDT ensure safe operation in washing machines and refrigerators.
Battery Management Systems
4.5V-5.5V range aligns with lead-acid battery voltages for charge monitoring.
Printers and Copiers
20MHz processing and 4K RAM manage print head control and paper feed mechanisms.
Security Systems
WDT and industrial temperature range support alarm panels and access control units.
- Q: What is the core processor of DF2148BTE20V?
- A: It uses the H8S/2000 16-bit core at 20MHz.
- Q: What is the supply voltage range?
- A: It operates from 4.5V to 5.5V.
- Q: How much flash memory is available?
- A: It has 128KB of program flash (128K x 8).
- Q: What is the package type?
- A: It comes in a 100-pin TQFP package.
