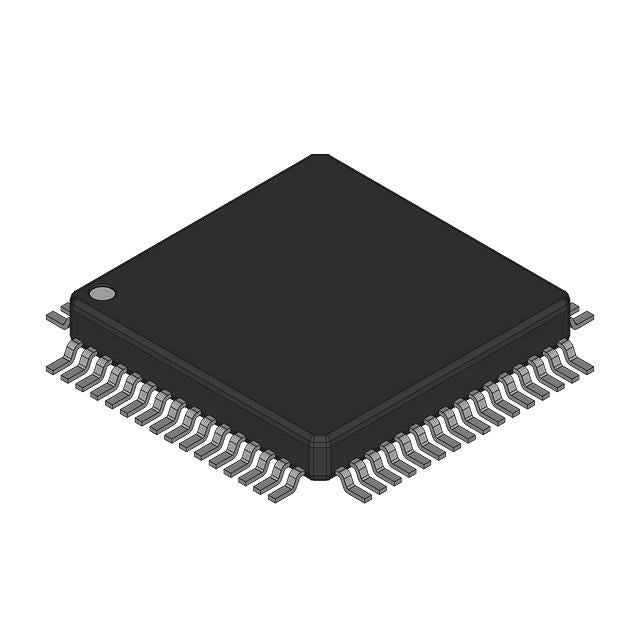

Renesas Electronics Corporation DF36054HV
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | H8® H8/300H Tiny |
| Packaging | | Tray |
| Core Processor | H8/300H |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | CANbus, SCI, SSU |
| Peripherals | PWM, WDT |
| Number of I/O | 45 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-QFP (14x14) |
| Package / Case | 64-BQFP |
| ROHS |  |
Product Overview
The DF36054HV is a high-performance 16-bit microcontroller from Renesas Electronics' H8/300H Tiny series, designed for embedded industrial and consumer applications. This MCU features a robust H8/300H core processor operating at 20MHz, delivering reliable performance for demanding control systems.
Key Features & Benefits
- 32KB Flash Memory: Ample program storage for complex embedded applications with in-system programmability
- 45 I/O Pins: Extensive GPIO capability for interfacing with sensors, actuators, and peripheral devices
- CANbus Connectivity: Built-in Controller Area Network support ideal for automotive and industrial communication protocols
- Wide Voltage Range (3V-5.5V): Flexible power supply options for diverse system designs
- 8-Channel 10-bit ADC: Integrated analog-to-digital conversion for sensor data acquisition
- PWM & Watchdog Timer: Essential peripherals for motor control and system reliability
- Compact 64-QFP Package: Space-efficient surface mount design (14x14mm) for high-density PCB layouts
- Industrial Temperature Range: Operates reliably from -20°C to 75°C for harsh environments
Technical Specifications Summary
This microcontroller combines 32KB of Flash program memory with 2KB of RAM, providing sufficient resources for real-time control applications. The internal oscillator simplifies system design by reducing external component count. Multiple serial communication interfaces (SCI, SSU) complement the CANbus capability, enabling versatile connectivity options.
Applications
The DF36054HV is well-suited for automotive control modules, industrial automation systems, motor control applications, sensor networks, and embedded consumer electronics requiring reliable 16-bit processing with integrated communication protocols.
Quality & Compliance
This component is RoHS compliant, meeting environmental standards for lead-free manufacturing. Supplied in tray packaging for automated assembly processes.
Related Products & Resources
Explore our complete range of Microcontrollers for embedded systems and industrial applications.
Visit HQICKEY for premium electronic components, semiconductors, and embedded solutions.
Stay updated with the latest industry insights and technical guides on our News & Technical Blog.
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
