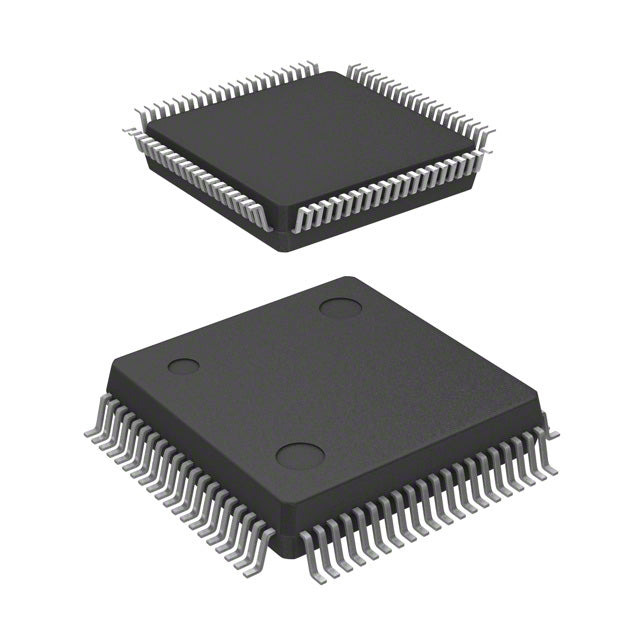

Renesas Electronics Corporation DF38076RH10V
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | H8® H8/300H SLP |
| Packaging | | Tray |
| Core Processor | H8/300H |
| Core Size | 16-Bit |
| Speed | 10MHz |
| Connectivity | I2C, IrDA, SCI |
| Peripherals | LCD, POR, PWM, WDT |
| Number of I/O | 55 |
| Program Memory Size | 52KB (52K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-QFP (14x14) |
| Package / Case | 80-BQFP |
| ROHS |  |
Product Overview
The DF38076RH10V is a high-performance 16-bit microcontroller from Renesas Electronics' H8/300H SLP series. Featuring 52KB Flash memory, 2KB RAM, and operating at 10MHz, this MCU is designed for embedded applications requiring reliable performance and low power consumption. With 55 I/O pins and integrated peripherals including LCD controller, PWM, and watchdog timer, it's ideal for industrial control, consumer electronics, and IoT devices.
Key Features
- 16-bit H8/300H core processor running at 10MHz for efficient processing
- 52KB Flash memory for program storage with 2KB RAM
- 55 I/O pins for flexible connectivity and control
- Multiple communication interfaces: I2C, IrDA, SCI for versatile connectivity
- Integrated peripherals: LCD controller, PWM, POR, Watchdog Timer
- 8-channel 10-bit A/D converter for analog signal processing
- Wide operating voltage: 2.7V to 3.6V for flexible power supply options
- Operating temperature range: -20°C to 75°C for industrial applications
- Surface mount 80-QFP package (14x14mm) for compact PCB designs
- RoHS compliant for environmental safety
Applications
This microcontroller is perfect for embedded system designs in industrial automation, consumer electronics, automotive systems, medical devices, and IoT applications where reliable 16-bit processing and integrated peripherals are essential.
