Renesas Electronics Corporation DF38086RH4V
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | H8® H8/300H SLP |
| Packaging | | Tray |
| Core Processor | H8/300H |
| Core Size | 16-Bit |
| Speed | 4MHz |
| Connectivity | I2C, IrDA, SCI |
| Peripherals | LCD, POR, PWM, WDT |
| Number of I/O | 55 |
| Program Memory Size | 52KB (52K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 3x10b, 2x14b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

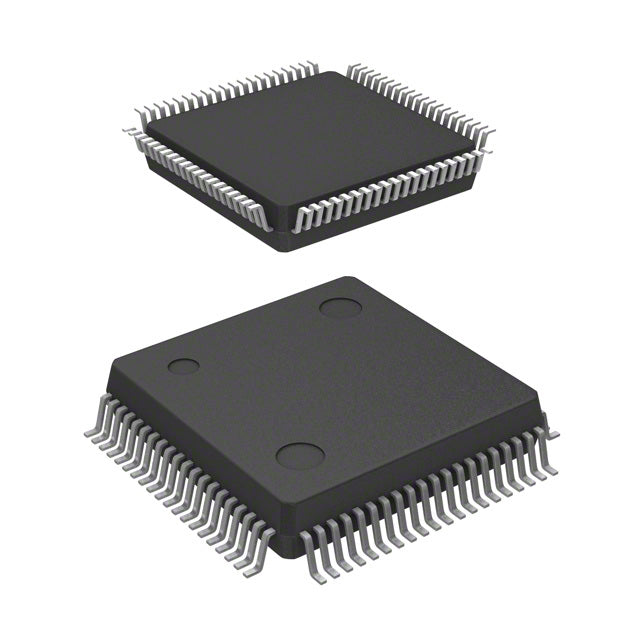

| Supplier Device Package | 80-QFP (14x14) |
| Package / Case | 80-BQFP |
| ROHS |  |
Renesas H8/300H SLP Series Microcontroller - DF38086RH4V
The DF38086RH4V is a high-performance 16-bit microcontroller from Renesas Electronics' renowned H8/300H SLP series, designed to deliver exceptional processing power and versatility for embedded applications. Operating at 4MHz with a robust voltage range of 1.8V to 3.6V, this microcontroller is ideal for battery-powered devices, IoT applications, and industrial control systems.
Featuring 52KB of flash memory and 2KB of RAM, the DF38086RH4V provides ample storage for complex programs while maintaining energy efficiency. With 55 I/O pins, this MCU offers extensive connectivity options including I2C, IrDA, and SCI interfaces, making it perfect for communication-intensive applications. The integrated LCD controller, PWM capabilities, and watchdog timer enhance its functionality for display-driven and safety-critical systems.
The advanced analog capabilities include multiple A/D converters (3x10-bit and 2x14-bit), enabling precise sensor readings and data acquisition. Housed in an 80-QFP surface mount package, this microcontroller is designed for reliable performance across a wide temperature range (-20°C to 75°C), making it suitable for automotive, medical, and industrial environments.
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
