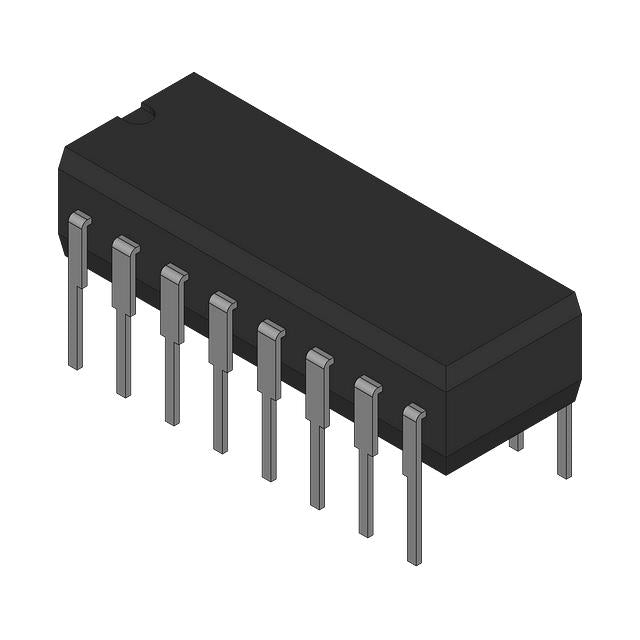

Analog Devices Inc./Maxim Integrated DG201ABJ-2
Regular price
$14.44
Regular price
$3.61
Sale price
$14.44
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.44 | $14.44 |
| 15+ | $3.32 | $49.80 |
| 25+ | $3.25 | $81.25 |
| 50+ | $3.07 | $153.50 |
| 100+ | $2.71 | $271.00 |
| N+ | $0.54 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Switch Circuit | SPST - NC - Closed |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 200Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 4.5V ~ 18V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 600ns, 450ns |
| -3db Bandwidth | - |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-DIP (0.300", 7.62mm) |
DG201ABJ-2.pdf
×
