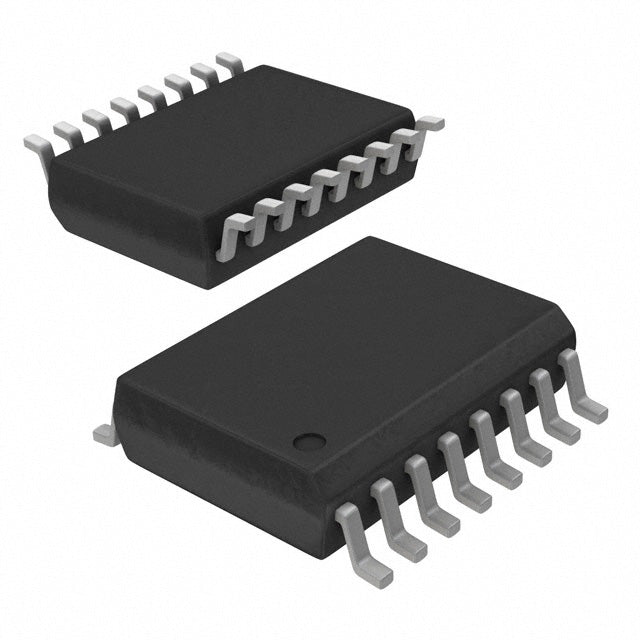

Analog Devices Inc./Maxim Integrated DG302ACWE+
Regular price
$26.49
Regular price
$27.88
Sale price
$26.49
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $26.49 | $26.49 |
| 15+ | $25.65 | $384.75 |
| 25+ | $25.09 | $627.25 |
| 50+ | $23.70 | $1,185.00 |
| 100+ | $20.91 | $2,091.00 |
| N+ | $4.18 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | DPST |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 50Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 300ns, 250ns |
| -3db Bandwidth | - |
| Charge Injection | 12pC |
| Channel Capacitance (CS(off), CD(off)) | 14pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | -74dB @ 500kHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC (0.295", 7.50mm Width) |
| ROHS |  |
DG302ACWE+.pdf
×
