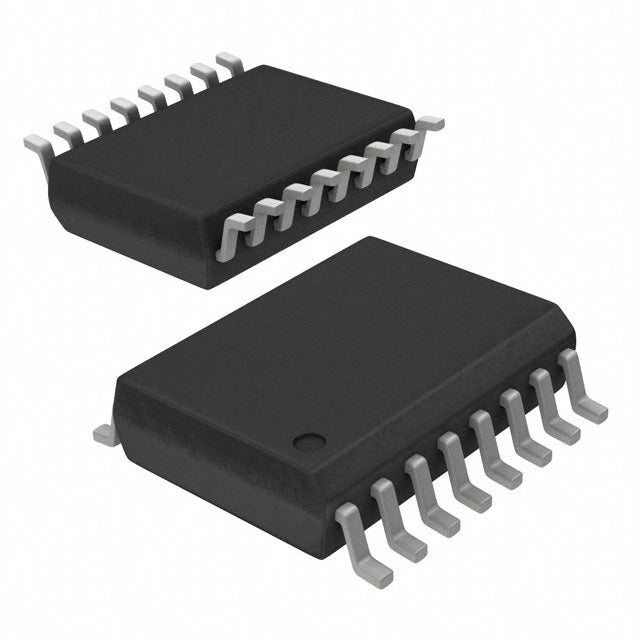

Analog Devices Inc./Maxim Integrated DG305ACWE
Regular price
$16.31
Regular price
$4.08
Sale price
$16.31
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.31 | $16.31 |
| 15+ | $3.75 | $56.25 |
| 25+ | $3.67 | $91.75 |
| 50+ | $3.47 | $173.50 |
| 100+ | $3.06 | $306.00 |
| N+ | $0.61 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 50Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 250ns, 150ns |
| -3db Bandwidth | - |
| Charge Injection | 12pC |
| Channel Capacitance (CS(off), CD(off)) | 14pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | -74dB @ 500kHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC (0.295", 7.50mm Width) |
| ROHS |  |
DG305ACWE.pdf
×
