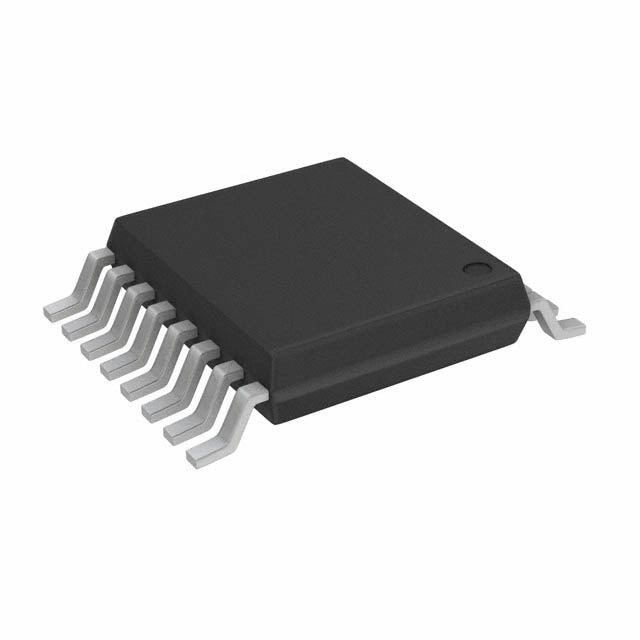

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Vishay Siliconix
DG309BDQ-E3
DG309BDQ-E3
Regular price
Dhs. 4.12
Regular price
Dhs. 4.35
Sale price
Dhs. 4.12
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 4.12 AED | Dhs. 4.12 AED |
| 15+ | Dhs. 4.00 AED | Dhs. 60.00 AED |
| 25+ | Dhs. 3.92 AED | Dhs. 98.00 AED |
| 50+ | Dhs. 3.70 AED | Dhs. 185.00 AED |
| 100+ | Dhs. 3.26 AED | Dhs. 326.00 AED |
| N+ | Dhs. 0.65 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Vishay Siliconix |
| Product Series | |
| Packaging | Bulk | |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 85Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.7Ohm |
| Voltage - Supply, Single (V+) | 4V ~ 44V |
| Voltage - Supply, Dual (V±) | ±4V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 200ns, 150ns |
| -3db Bandwidth | - |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -95dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
Datasheets:
DG309BDQ-E3
.pdf
×
