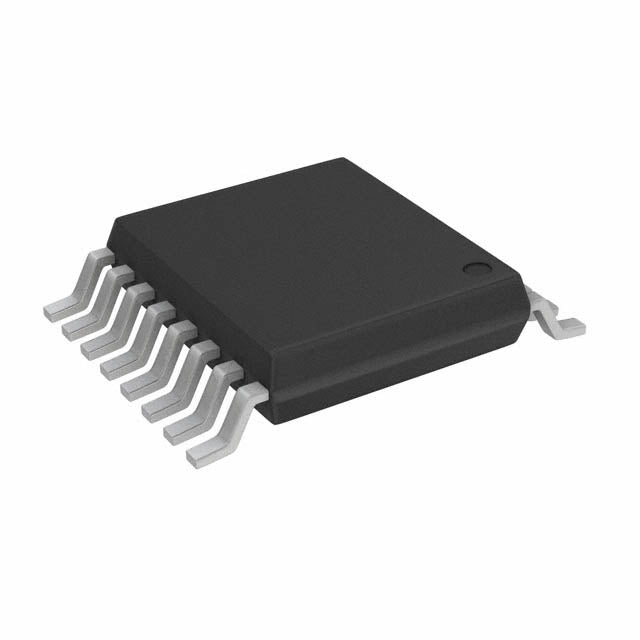

Renesas Electronics Corporation DG409DVZ
Regular price
$4.63
Regular price
$4.87
Sale price
$4.63
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.63 | $4.63 |
| 15+ | $4.48 | $67.20 |
| 25+ | $4.38 | $109.50 |
| 50+ | $4.14 | $207.00 |
| 100+ | $3.65 | $365.00 |
| N+ | $0.73 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm (Max) |
| Voltage - Supply, Single (V+) | 5V ~ 34V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| -3db Bandwidth | - |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
DG409DVZ.pdf
×
