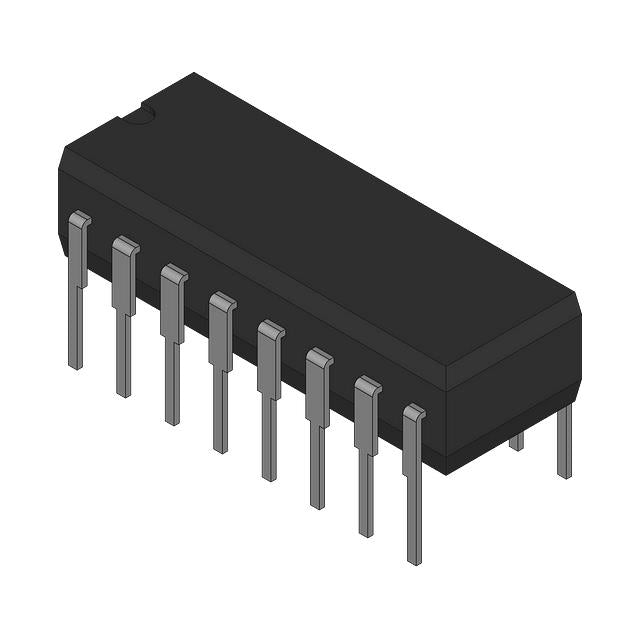

Harris Corporation DG409EJ
Regular price
$13.52
Regular price
$3.38
Sale price
$13.52
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.52 | $13.52 |
| 15+ | $3.11 | $46.65 |
| 25+ | $3.04 | $76.00 |
| 50+ | $2.87 | $143.50 |
| 100+ | $2.54 | $254.00 |
| N+ | $0.51 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Harris Corporation |
| Product Series | |
| Packaging | Bulk | |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm |
| Voltage - Supply, Single (V+) | 15V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| -3db Bandwidth | - |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 26pF |
| Current - Leakage (IS(off)) (Max) | 500pA (Typ) |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-DIP (0.300", 7.62mm) |
DG409EJ.pdf
×
