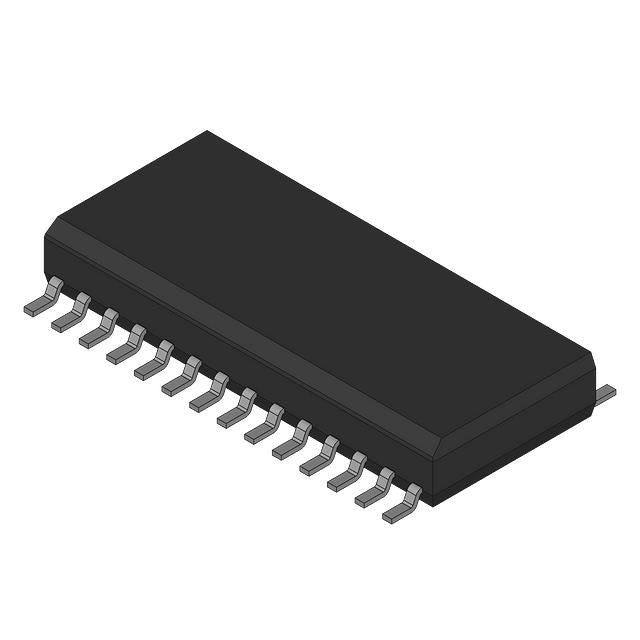

Analog Devices Inc./Maxim Integrated DG507AMWI/PR
Regular price
$81.72
Regular price
$20.43
Sale price
$81.72
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $81.72 | $81.72 |
| 15+ | $18.80 | $282.00 |
| 25+ | $18.39 | $459.75 |
| 50+ | $17.37 | $868.50 |
| 100+ | $15.32 | $1,532.00 |
| N+ | $3.06 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Switch Circuit | SP8T - Open/Closed |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 24Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 1µs, 400ns (Typ) |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 6pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC (0.295", 7.50mm Width) |
DG507AMWI/PR.pdf
×
