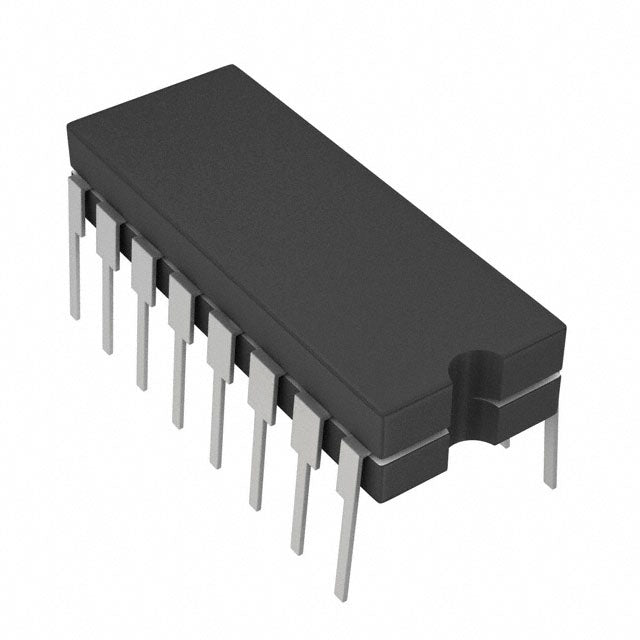

Analog Devices Inc./Maxim Integrated DG509ABK
Regular price
Dhs. 24.91
Regular price
Dhs. 26.23
Sale price
Dhs. 24.91
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 24.91 | Dhs. 24.91 |
| 15+ | Dhs. 24.13 | Dhs. 361.95 |
| 25+ | Dhs. 23.61 | Dhs. 590.25 |
| 50+ | Dhs. 22.30 | Dhs. 1,115.00 |
| 100+ | Dhs. 19.67 | Dhs. 1,967.00 |
| N+ | Dhs. 3.93 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bag | |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 27Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1µs |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP (0.300", 7.62mm) |
DG509ABK.pdf
×
