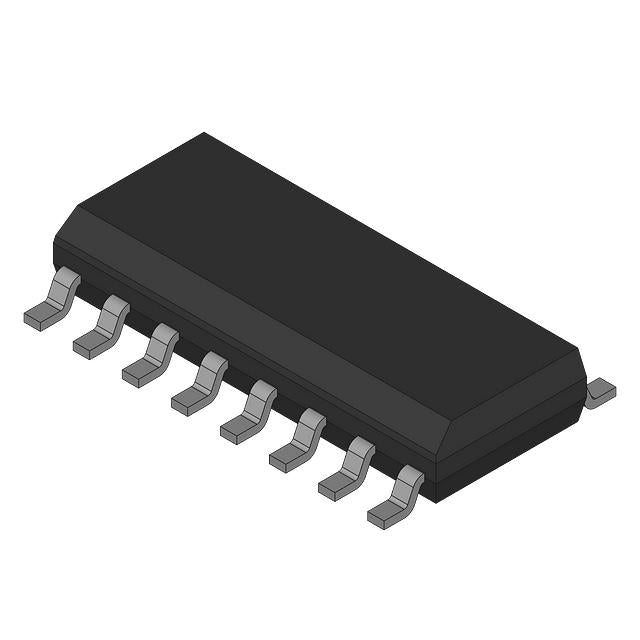

Analog Devices Inc./Maxim Integrated DG509AEWE
Regular price
$22.16
Regular price
$5.54
Sale price
$22.16
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $22.16 | $22.16 |
| 15+ | $5.10 | $76.50 |
| 25+ | $4.99 | $124.75 |
| 50+ | $4.71 | $235.50 |
| 100+ | $4.16 | $416.00 |
| N+ | $0.83 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Switch Circuit | SP4T - Open/Closed |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 27Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1µs |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC (0.295", 7.50mm Width) |
DG509AEWE.pdf
×
