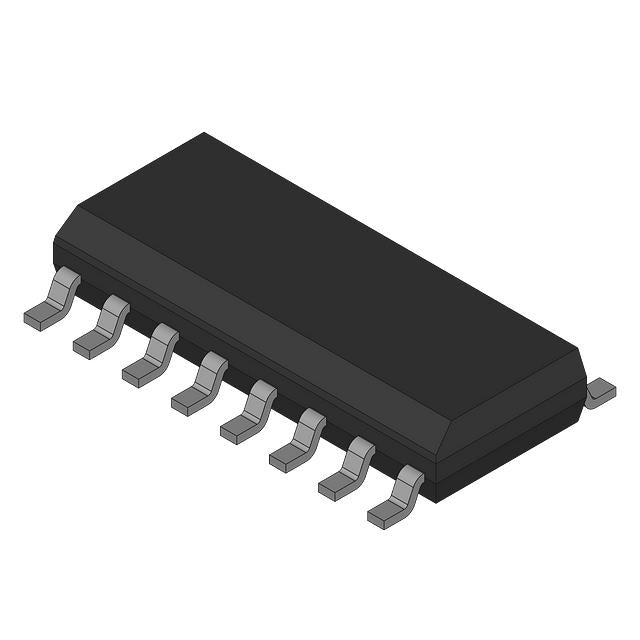

Analog Devices Inc./Maxim Integrated DG509AMY/PR
Regular price
Dhs. 45.18
Regular price
Dhs. 47.54
Sale price
Dhs. 45.18
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 45.18 | Dhs. 45.18 |
| 15+ | Dhs. 43.74 | Dhs. 656.10 |
| 25+ | Dhs. 42.79 | Dhs. 1,069.75 |
| 50+ | Dhs. 40.41 | Dhs. 2,020.50 |
| 100+ | Dhs. 35.66 | Dhs. 3,566.00 |
| N+ | Dhs. 7.13 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Switch Circuit | SP4T - Open/Closed |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 24Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 1µs, 700ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | - |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC (0.154", 3.90mm Width) |
DG509AMY/PR.pdf
×
