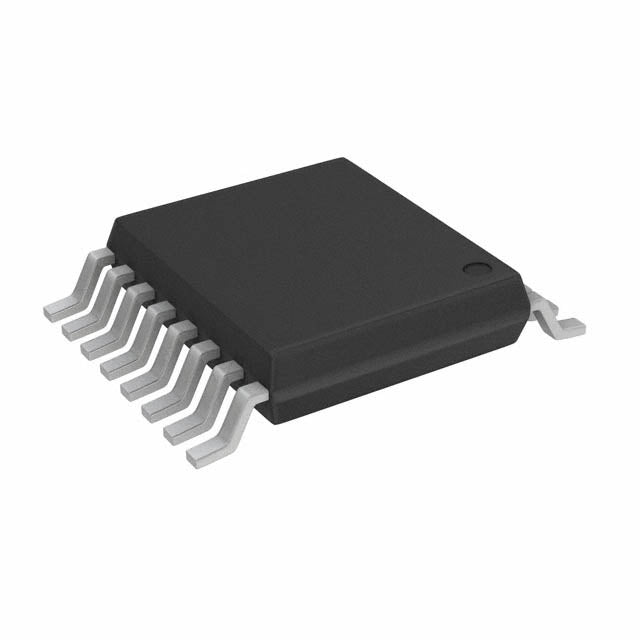

Vishay Siliconix DG509BEQ-T1-E3
Regular price
$2.71
Regular price
$2.85
Sale price
$2.71
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.71 | $2.71 |
| 15+ | $2.62 | $39.30 |
| 25+ | $2.57 | $64.25 |
| 50+ | $2.42 | $121.00 |
| 100+ | $2.14 | $214.00 |
| N+ | $0.43 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Vishay Siliconix |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 380Ohm |
| Channel-to-Channel Matching (ΔRon) | 10Ohm |
| Voltage - Supply, Single (V+) | 12V ~ 44V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 250ns, 240ns |
| -3db Bandwidth | 250MHz |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 8pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -88dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
DG509BEQ-T1-E3.pdf
×
