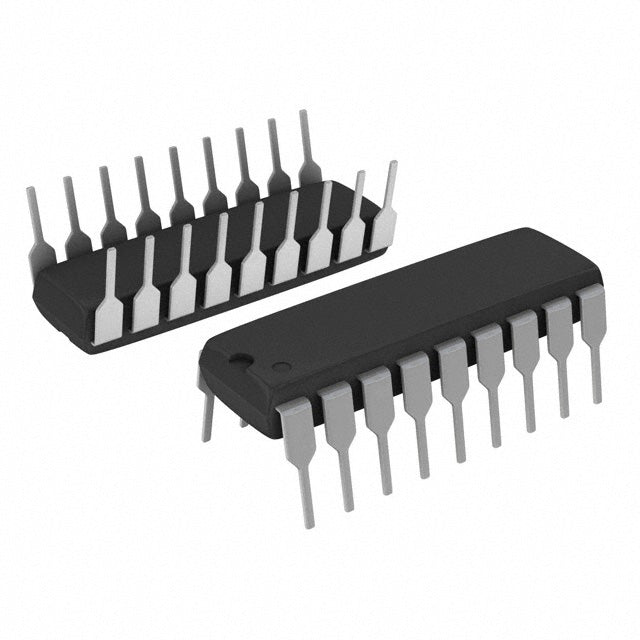

Analog Devices Inc./Maxim Integrated DG529CJ+
Regular price
$15.56
Regular price
$16.38
Sale price
$15.56
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $15.56 | $15.56 |
| 15+ | $15.07 | $226.05 |
| 25+ | $14.74 | $368.50 |
| 50+ | $13.92 | $696.00 |
| 100+ | $12.29 | $1,229.00 |
| N+ | $2.46 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 27Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1.5µs |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 18-DIP (0.300", 7.62mm) |
| Supplier Device Package | 18-DIP (0.300", 7.62mm) |
DG529CJ+.pdf
×
