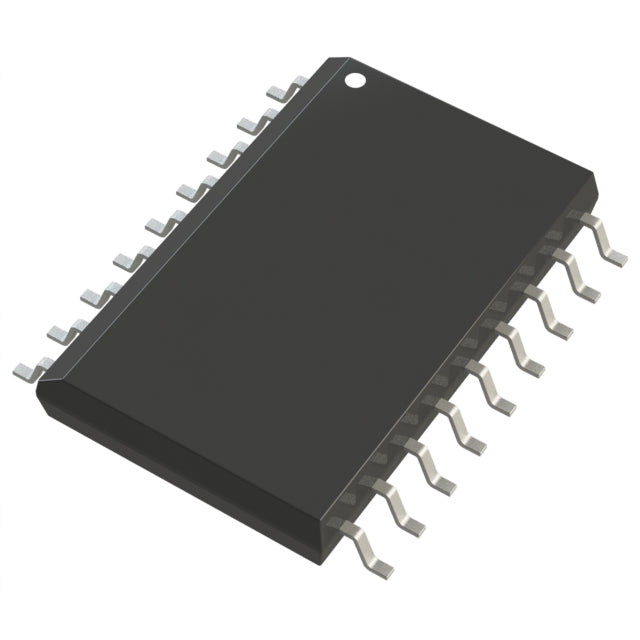

Analog Devices Inc./Maxim Integrated DG529CWN+
Regular price
$10.23
Regular price
$10.77
Sale price
$10.23
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.23 | $10.23 |
| 15+ | $9.91 | $148.65 |
| 25+ | $9.69 | $242.25 |
| 50+ | $9.15 | $457.50 |
| 100+ | $8.08 | $808.00 |
| N+ | $1.62 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 27Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1.5µs |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 18-SOIC (0.295", 7.50mm Width) |
| ROHS |  |
DG529CWN+.pdf
×
